MP-5000 Alpha

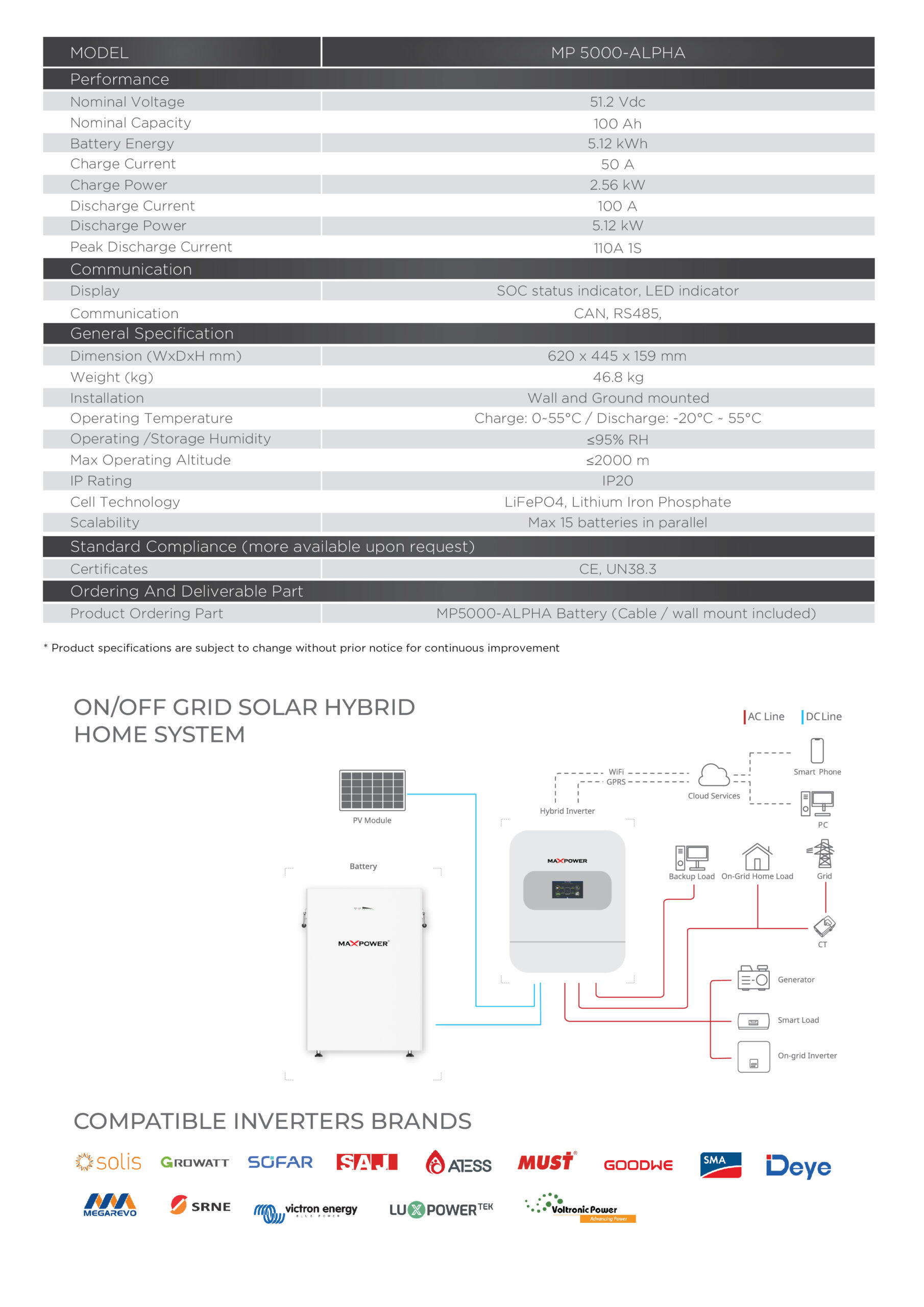

The Maxpower MP 5000-ALPHA is a 51.2V 100Ah LiFePO4 (Lithium Iron Phosphate) battery with 5.12kWh of energy, part of Maxpower’s Alpha Series Batteries within our broader lithium battery range. It is built for residential and small commercial solar systems, and provides backup power during load shedding when paired with a compatible hybrid inverter.

It supports a charge current of 50A (2.56kW charge power) and a discharge current of 100A (5.12kW discharge power), with a peak discharge current of 110A for 1 second. The actual charge and discharge current is also limited by your inverter’s own rating. It communicates with the inverter over CAN and RS485 and shows its status through a SOC status indicator and LED indicator. You can connect up to 15 batteries in parallel (about 76.8kWh in total) as your storage needs grow.

The battery can be wall-mounted or ground-mounted (cable and wall mount included). It weighs 44kg and measures 620 x 445 x 159mm. It charges at 0°C to 55°C and discharges at -20°C to 55°C, with an operating and storage humidity of up to 95% RH and a maximum altitude of 2000m. With an IP20 rating, it is designed for indoor installation, and it is CE and UN38.3 certified. It works with many hybrid inverter brands, including Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power. Browse Maxpower’s hybrid solar inverters to build a complete system.

Frequently Asked Questions

What is the Maxpower MP 5000-ALPHA lithium battery used for?
The MP 5000-ALPHA is used for home solar systems and small commercial energy storage. With a compatible hybrid inverter, it provides backup power for uninterrupted electricity during load shedding.

What is the capacity of the MP 5000-ALPHA lithium battery?
It has a nominal capacity of 100Ah at 51.2V, which gives 5.12kWh of energy storage. For larger needs, you can connect up to 15 batteries in parallel. Explore other options in our Alpha Series Batteries range.

What is the price of the MP 5000-ALPHA lithium battery in Pakistan?
The price depends on availability and the size of your system. Contact Maxpower for the latest price and quotation.

How much backup power can the MP 5000-ALPHA provide during load shedding?
It stores 5.12kWh and can discharge at up to 5.12kW. How long it runs your loads depends on their total wattage. For example, a 1kW load could run for roughly 5 hours from a full charge, before inverter losses and depth of discharge are considered.

What is the difference between the MP 5000-ALPHA and the MP 5000 (48V) PRO?
Both are 51.2V 100Ah (5.12kWh) LiFePO4 batteries with CAN / RS485 communication and IP20 rating. The MP 5000-ALPHA has a 100A discharge current and supports 15 batteries in parallel, while the MP 5000 (48V) PRO has a 100A maximum charge / discharge current and a 50A standard current.

Can the MP 5000-ALPHA be installed outdoors?
No, it has an IP20 rating, so it should be installed indoors, away from dust and water. It can be wall-mounted or ground-mounted.

Is the MP 5000-ALPHA compatible with solar energy systems in Pakistan?
Yes, with a compatible hybrid inverter it can be used in home solar systems and provides backup power during outages. Choose the capacity based on your load and backup hours.
