MP 20024-Alpha

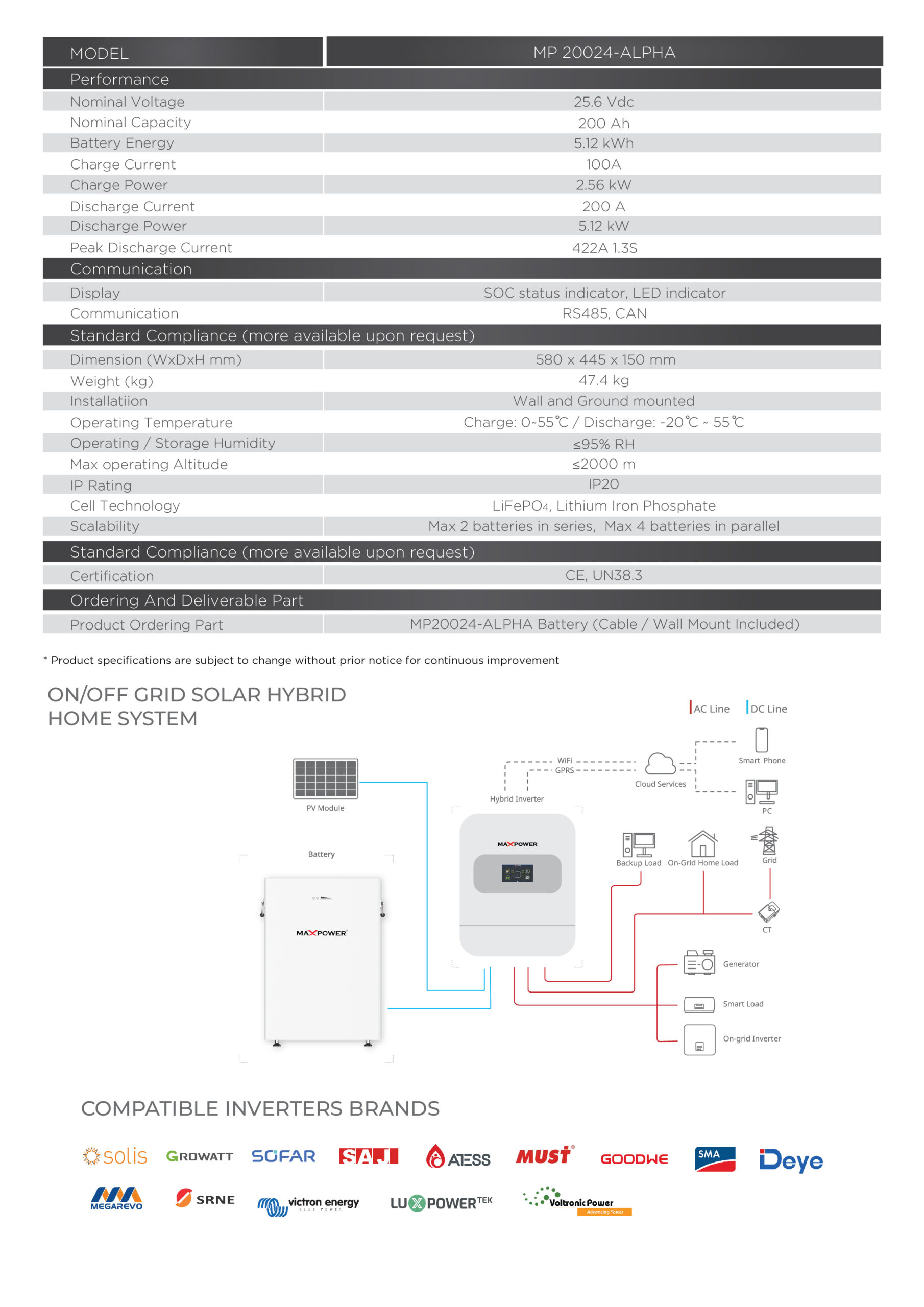

The Maxpower MP20024-ALPHA is a 25.6V 200Ah Lithium Iron Phosphate (LiFePO4) battery with 5.12kWh of energy, part of Maxpower’s Alpha Series Batteries within our broader lithium-ion batteries range. It is built for on-grid and off-grid solar hybrid home systems and delivers reliable backup energy storage, making it a good fit for residential solar solutions as well as smaller commercial solar solutions.

It supports a charge current of 100A (2.56kW charge power) and a discharge current of 200A (5.12kW discharge power), with a peak discharge current of 422A for 1.3 seconds for starting heavy loads. It communicates with the inverter over RS485 and CAN and shows its status through a SOC indicator and LED indicator. It works with many major hybrid inverter brands, as long as the inverter has a 24V battery input and a compatible battery protocol. Browse our hybrid inverters and Sofar inverters to build a complete system.

For larger systems, you can connect up to 2 batteries in series (51.2V, for 48V inverters) and up to 4 in parallel. The battery has an IP20 rating, so it is designed for indoor installation, and it can be wall-mounted or ground-mounted (cable and wall mount included). It weighs 47.4kg, measures 580 x 445 x 150mm, charges at 0°C to 55°C and discharges at -20°C to 55°C, and is CE and UN38.3 certified. For much larger installations, consider our high-voltage battery range, and complete your setup with our solar panels.

Frequently Asked Questions

What is the capacity of the Maxpower MP20024-ALPHA battery?
It has a nominal capacity of 200Ah at 25.6V, which gives 5.12kWh of energy storage. Explore other options in our Alpha Series Batteries range if you need a different capacity or voltage.

What is the price of the MP20024-ALPHA lithium battery in Pakistan?
The price depends on availability and the size of your system. Contact Maxpower for the latest price and quotation.

Can multiple MP20024-ALPHA batteries be connected together?
Yes, you can connect up to 2 batteries in series and up to 4 in parallel. For even larger energy needs, check our high-voltage battery range.

What is the difference between the MP20024-ALPHA and the MP 5000 (48V) PRO?
Both store 5.12kWh. The MP20024-ALPHA is 25.6V 200Ah, while the MP 5000 (48V) PRO is 51.2V 100Ah, so the right choice depends on your inverter’s battery voltage (24V or 48V).

Does this battery use LiFePO4 technology?
Yes, it uses Lithium Iron Phosphate (LiFePO4) cell technology. See our complete lithium-ion battery lineup for more LiFePO4 options.

How is the MP20024-ALPHA battery installed?
It supports wall-mount or ground-mount installation and weighs 47.4kg, with the cable and wall mount included. It has an IP20 rating, so it should be installed indoors, away from dust and water. Pair it with our solar panels and browse our residential solar solutions for a complete home system.
