HV 5000-High Voltage

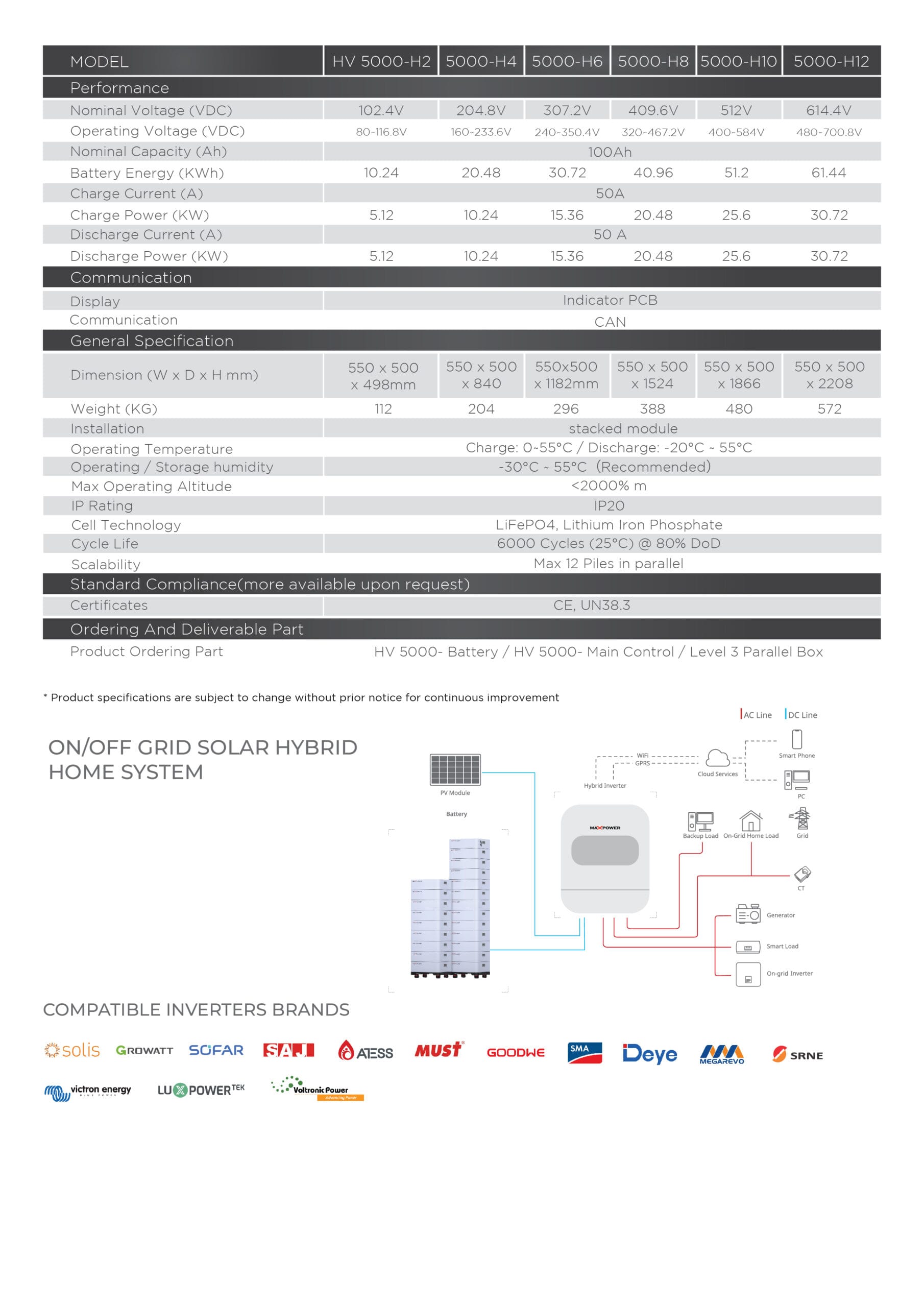

The Maxpower HV 5000 Series is a modular high-voltage LiFePO4 (Lithium Iron Phosphate) battery storage system for homes, offices and industries in Pakistan that face frequent load shedding and unstable grid supply. It is a stackable system that scales from 10.24kWh (HV 5000-H2) up to 61.44kWh (HV 5000-H12), so you can choose the capacity that matches your load. See the full lithium battery range for other options.

All models share a nominal capacity of 100Ah and a charge / discharge current of 50A, with charge and discharge power from 5.12kW (H2) to 30.72kW (H12). You can connect up to 12 piles (stacks) in parallel, which makes the system suitable for both residential backup and commercial or industrial solar hybrid systems. It is rated for 6000 cycles at 80% DoD (25°C).

The HV 5000 Series uses CAN communication to connect with a compatible high-voltage hybrid inverter and has an IP20 rating, so it is designed for indoor stacked installation. It charges at 0°C to 55°C and discharges at -20°C to 55°C, and is CE and UN38.3 certified. It works with many inverter brands, including Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power, as long as the inverter supports the battery’s voltage range. Browse Maxpower’s hybrid inverters to find a matching high-voltage inverter.

Frequently Asked Questions

What is the capacity range of the HV 5000 Series?
The series ranges from 10.24kWh (H2) to 61.44kWh (H12), depending on the model. All models have a nominal capacity of 100Ah and a 50A charge / discharge current. See the full lithium battery range.

What is the price of the HV 5000 high-voltage lithium battery in Pakistan?
The price depends on the model (H2 to H12) and your system size. Contact Maxpower for the latest price and quotation.

Which inverters work with the HV 5000 Series?
It works with many hybrid inverter brands, including Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power, using CAN communication. It is a high-voltage battery, so it needs a high-voltage hybrid inverter whose battery voltage range covers the model you choose. It is not for 48V inverters. Please confirm compatibility with your exact inverter before purchase.

How do I choose the right HV 5000 model?
Choose the model by capacity and by voltage. Each model has its own operating voltage range (for example H6: 240V to 350.4V), which must fit inside your inverter’s battery voltage range. Capacity should match your backup hours and load.

Can multiple units be connected together?
Yes, you can connect up to 12 piles in parallel using the parallel box, which is useful for commercial solar setups.

Can the HV 5000 Series be installed outdoors?
No, it has an IP20 rating, so it is designed for indoor stacked installation, away from dust and water.

Is it suitable for net metering systems?
The battery works with a compatible high-voltage hybrid inverter. Net metering depends on the inverter and your distribution company (DISCO), so please confirm the current approval requirements before installation. See Net Metering Solutions or contact us for guidance.
