HYD-20K-H6

Max. PV Access Power: 40kW

Max. DC Input Power:  32kW

Nominal Input Voltage: 600V

MPPT Working Voltage Range: 180V – 850V

Nominal Output Voltage: 380V/400V ±20%

Battery Voltage Range: 150V – 750V

Warranty 5 Years

The Voltas HYD-20K-H6 is a 20kW three-phase hybrid solar inverter from Maxpower, engineered for large homes, businesses and commercial solar systems across Pakistan. With 2 independent MPPT trackers, 99.9% maximum efficiency and an IP66 rating, this transformerless inverter delivers reliable on-grid operation with a dedicated back-up output for load shedding.

Built for demanding installations, it supports a maximum PV access power of 40kW (32kW maximum DC input power) with an MPPT voltage range of 180V to 850V and 2 strings per MPPT, helping you harvest maximum energy from your solar panel array. Its battery voltage range of 150V to 750V and self-adapting BMS charging strategy make it compatible with high-voltage Li-ion battery systems, so you can pair it with Maxpower’s high-voltage lithium batteries for complete energy storage.

Designed with safety and longevity in mind, it includes anti-islanding protection, RCD detection, PV reverse polarity protection, output backflow protection and DC Type II / AC Type III surge protection. Its smart cooling and -25°C to +60°C operating range suit Pakistan’s hot summers, and an automatic switch time of under 10ms gives near-instant back-up power during grid outages. Monitoring is available through WiFi / 4G / USB / CAN / RS485 communication, and the inverter comes with a 5-year warranty.

Frequently Asked Questions

What is the Voltas HYD-20K-H6 hybrid inverter?
The Voltas HYD-20K-H6 is a 20kW three-phase hybrid solar inverter (22kVA maximum) that works with solar panels, high-voltage Li-ion batteries and the utility grid. It offers 99.9% maximum efficiency, 2 MPPT trackers and a back-up output of 20kVA.

How many solar panels can the Voltas HYD-20K-H6 support?
It supports a maximum PV access power of 40kW and a maximum DC input power of 32kW, with an MPPT voltage range of 180V to 850V and 2 strings per MPPT. The exact number of panels depends on your panel wattage and string design.

Which batteries are compatible with the Voltas HYD-20K-H6?
It supports Li-ion batteries with a battery voltage range of 150V to 750V and a maximum charge / discharge current of 50A, with a charging strategy that self-adapts to the BMS. It is a high-voltage battery inverter, so it is not designed for lead-acid or low-voltage (48V) batteries.

Can the Voltas HYD-20K-H6 provide backup power during load shedding?
Yes, when connected to a compatible battery system, it provides back-up power with an automatic switch time of under 10ms and a maximum battery-to-load efficiency of 98%, so essential loads keep running during outages.

Is the Voltas HYD-20K-H6 suitable for commercial solar projects in Pakistan?
Yes, with 20kW nominal output (22kVA maximum) at 380/400V three-phase, IP66 protection, smart cooling and comprehensive protection features, it is well suited to commercial and industrial installations.

Can the Voltas HYD-20K-H6 be used for net metering in Pakistan?
It is a grid-connected hybrid inverter and can be used in net metering setups. Please confirm the current approval requirements with your distribution company (DISCO) before installation.

What warranty does the Voltas HYD-20K-H6 come with?
The Voltas HYD-20K-H6 comes with a 5-year warranty.

Why choose Maxpower for solar energy solutions?
Maxpower offers solar panels, hybrid inverters and lithium batteries for residential and commercial customers in Pakistan, with project support and a 5-year warranty on the Voltas HYD-20K-H6.

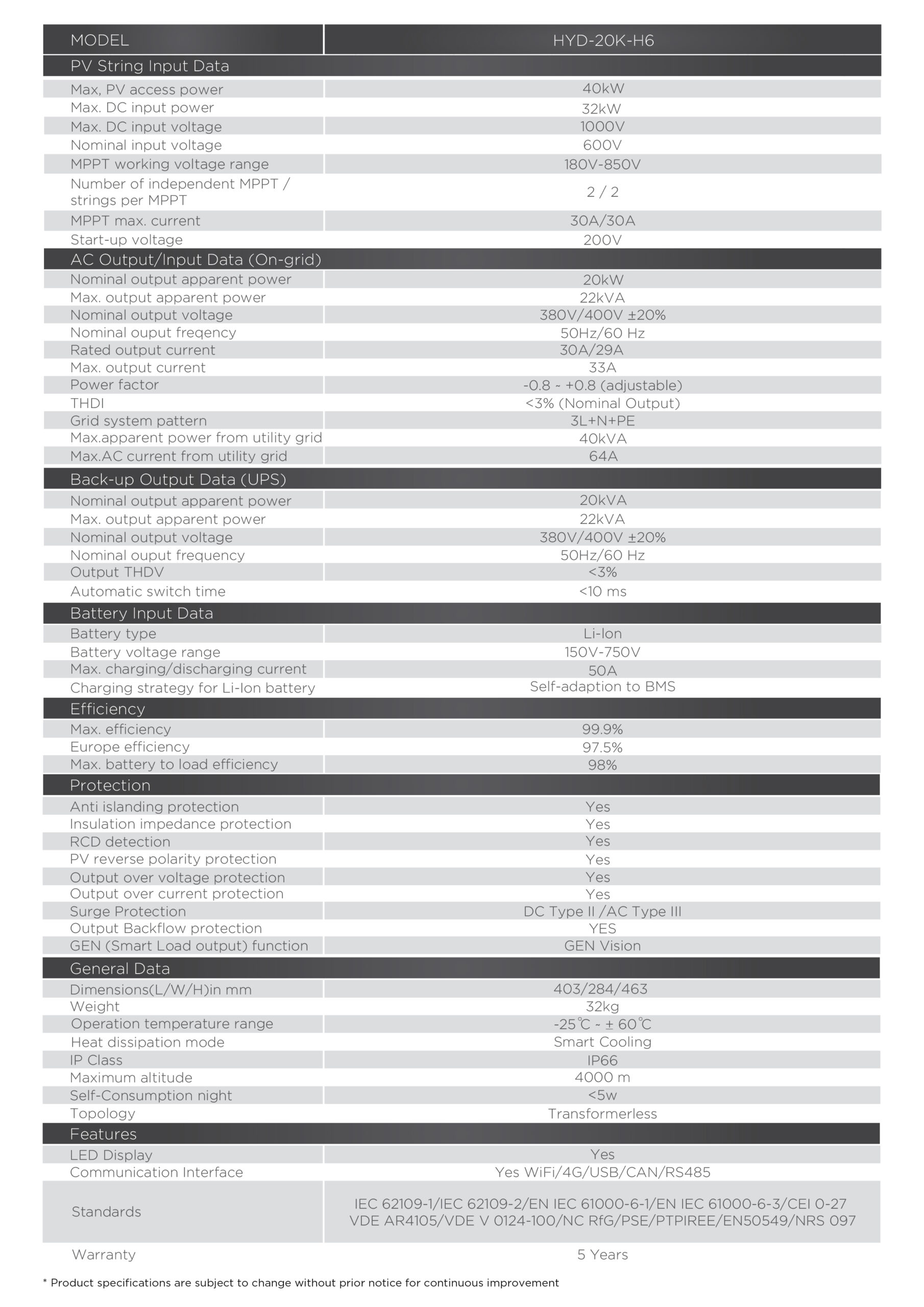

Technical Specifications

HYD-20K-H6 Voltage Hybrid Inverter
