MP-16000 Alpha

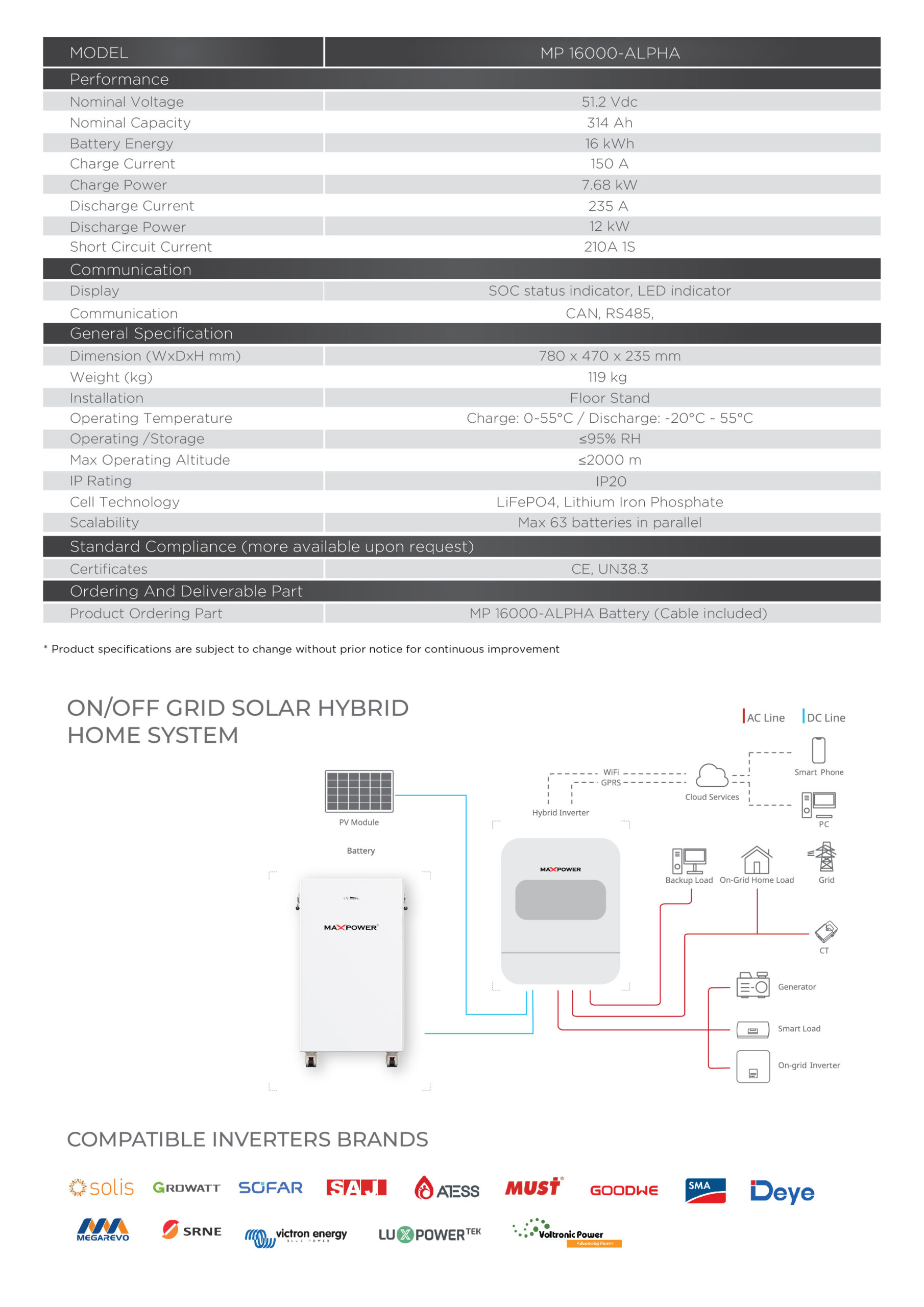

The Maxpower MP 16000-ALPHA is a 51.2V 314Ah LiFePO4 (Lithium Iron Phosphate) battery with 16kWh of energy, part of Maxpower’s Alpha Series Batteries within our broader lithium battery range. It is built for residential and commercial solar energy storage, providing backup power for homes and offices during load shedding when paired with a compatible hybrid inverter.

It supports a charge current of 150A (7.68kW charge power) and a discharge current of 235A (12kW discharge power), with a short circuit current of 210A for 1 second. The actual charge and discharge current is also limited by your inverter’s own rating. It communicates with the inverter over CAN and RS485 and shows its status through a SOC status indicator and LED indicator. You can connect up to 63 batteries in parallel for larger installations.

The battery is a floor-stand unit (cable included) that weighs 119kg and measures 780 x 470 x 235mm. It charges at 0°C to 55°C and discharges at -20°C to 55°C, with an operating and storage humidity of up to 95% RH and a maximum altitude of 2000m. With an IP20 rating, it is designed for indoor installation, and it is CE and UN38.3 certified. It works with many hybrid inverter brands. Browse Maxpower’s hybrid solar inverters to build a complete system.

Frequently Asked Questions

What is the Maxpower MP 16000-ALPHA lithium battery used for?
The MP 16000-ALPHA is used for residential and commercial solar energy storage. With a compatible hybrid inverter, it provides backup power for homes and offices during load shedding and grid outages.

What is the energy capacity of the MP 16000-ALPHA battery?
It offers 16kWh of energy with a nominal capacity of 314Ah at 51.2V, which suits high-load solar systems and long backup requirements. Explore other options in our Alpha Series Batteries range.

What is the price of the MP 16000-ALPHA lithium battery in Pakistan?
The price depends on availability and the size of your system. Contact Maxpower for the latest price and quotation.

How much backup power can the MP 16000-ALPHA provide during load shedding?
It stores 16kWh and can discharge at up to 12kW. How long it runs your loads depends on their total wattage. For example, a 2kW load could run for roughly 8 hours from a full charge, before inverter losses and depth of discharge are considered.

Can the MP 16000-ALPHA be installed outdoors?
No, it has an IP20 rating, so it should be installed indoors, away from dust and water. It is a floor-stand unit that weighs 119kg, so plan the location and floor loading before installation.

Is the MP 16000-ALPHA suitable for home solar systems in Pakistan?
Yes, with a compatible hybrid inverter it provides efficient energy storage and backup power for homes and offices. Choose the capacity based on your load and backup hours.
