April 1, 2026Voltas HYD 10K-H6 Pro
Nominal Output Power: 10kW
Max. PV input power: 16kW
Max. PV input voltage: 550V
MPPT working voltage range: 80V – 500V
MPPT max. current: 2 × 36A
Battery Voltage Range: 40V – 60V
Warranty: 5 Years
The Voltas HYD-10K-H6 PRO is a 10kW single-phase hybrid solar inverter in Pakistan, built for high performance and dependability in large homes, offices and small commercial buildings. This hybrid solar inverter combines on-grid operation with a dedicated back-up (UPS) output, giving you solar power, battery storage and load shedding backup in one unit, with a switch-over time of less than 10ms.
The inverter is compatible with Li-ion and lead-acid batteries and operates within a 40V to 60V battery voltage range, with a maximum charge / discharge current of 180A. For Li-ion batteries, the charging strategy self-adapts to the BMS for safe and effective energy management.
With a maximum PV input power of 16kW (up to 20kW PV access power), a maximum PV input voltage of 550V and an MPPT working voltage range of 80V to 500V, this inverter handles a wide range of solar setups. It features 2 MPPT trackers with 2 strings each, a maximum MPPT current of 2 x 36A and a start-up voltage of 100V. It delivers a nominal AC output of 10kW (11kVA maximum) and reaches a maximum efficiency of 99.9%. The IP66 rating and -25°C to +60°C operating range suit outdoor installation, and you can monitor the system through the 7 inch touch screen and WiFi / 4G / USB / CAN / RS485 communication. It comes with a 5-year warranty.
Frequently Asked Questions
What is the Voltas HYD-10K-H6 PRO hybrid inverter?
The Voltas HYD-10K-H6 PRO is a 10kW single-phase hybrid solar inverter that manages solar panels, batteries and grid power in one unit. It provides back-up power during outages and supports Li-ion and lead-acid batteries.
Is the Voltas HYD-10K-H6 PRO suitable for large homes and commercial solar systems?
Yes, with a nominal AC output of 10kW (11kVA maximum) and a maximum PV access power of 20kW, it is a good fit for large residential properties, offices and small commercial installations.
Can the Voltas HYD-10K-H6 PRO provide backup power during load shedding?
Yes, when connected to a compatible battery bank, it provides back-up power with a switch-over time of less than 10ms, so essential appliances keep running during grid outages and load shedding.
Which batteries are compatible with the Voltas HYD-10K-H6 PRO?
It supports both lithium-ion and lead-acid batteries (40V to 60V), with a maximum charge / discharge current of 180A, allowing flexible energy storage options based on your budget and energy requirements.
How many solar panels can the Voltas HYD-10K-H6 PRO support?
It accepts up to 16kW of PV input power (20kW PV access power) across 2 MPPT trackers with 2 strings each, with a maximum PV input voltage of 550V. The exact number of panels depends on your panel wattage and system design.
Is the Voltas HYD-10K-H6 PRO suitable for net metering in Pakistan?
Yes, it is a grid-connected hybrid inverter and can be used in net metering setups. Please confirm the current approval requirements with your distribution company (DISCO) before installation.
What warranty does the Voltas HYD-10K-H6 PRO come with?
The Voltas HYD-10K-H6 PRO comes with a 5-year warranty.

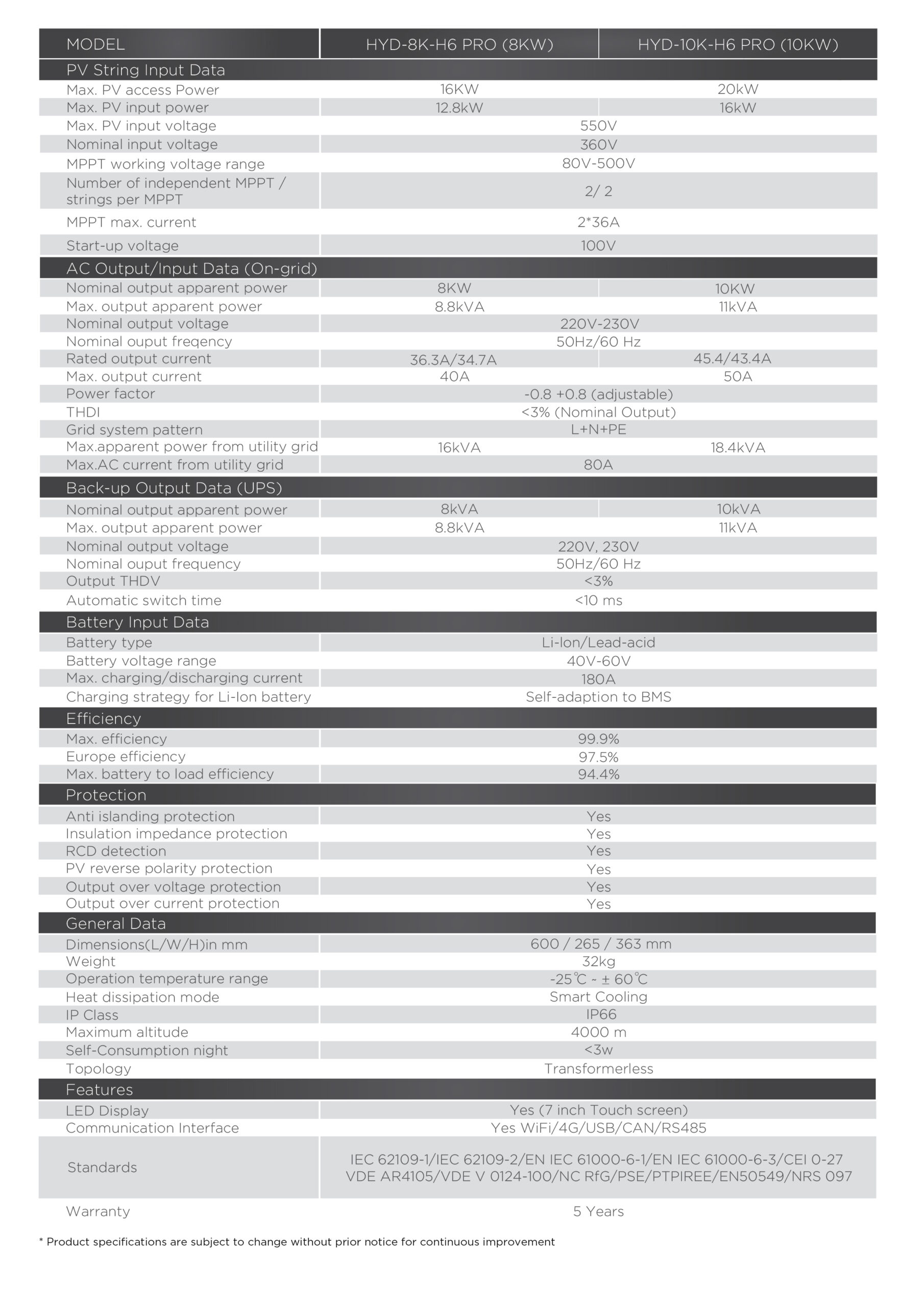

Technical Specifications
