September 15, 2025MP-1200 Alpha
Nominal Capacity: 100Ah
Battery Energy: 1.28kWh
Nominal Voltage: 12.8
Charge / Discharge Current: 50A / 100A
Communication: RS485
Scalability: Max 4 in Series, Max 4 in Parallel
Ingress Protection: IP20
The Maxpower MP-1200 Ultra is a 12.8V 100Ah LiFePO4 (Lithium Iron Phosphate) lithium battery for solar energy systems in Pakistan, suited to small homes, shops and light backup setups. It stores 1.28kWh of energy in a compact, lightweight case. You can connect up to 4 batteries in series and up to 4 in parallel for more capacity. See the full lithium battery range for other options.
It has a nominal capacity of 100Ah, a charge current of 50A and a discharge current of 100A. It is rated for 6000 cycles at 80% DoD (20°C to 55°C, 0.5C, 60% EOL). It has a working temperature range of -20°C to 60°C.
With RS485 communication, it connects to a compatible inverter. It has an IP20 rating, so it is meant for indoor installation. It is CE and UN38.3 certified. It works with many inverter brands, including Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power, as long as the inverter supports the battery’s 12.8V system. Browse Maxpower’s hybrid solar inverters to find a matching inverter.
Frequently Asked Questions
What is the MP-1200 Ultra lithium battery used for?
The MP-1200 Ultra is used for small solar energy storage in homes and shops. With a compatible inverter, it provides backup power during load shedding for light loads.
What is the capacity of the MP-1200 Ultra battery?
It has a 1.28kWh energy capacity with a nominal voltage of 12.8V and a nominal capacity of 100Ah. You can connect up to 4 batteries in parallel for larger backup needs.
What is the price of the MP-1200 Ultra lithium battery in Pakistan?
The price depends on the current market rate and your system size. Contact Maxpower for the latest price and quotation.
Which inverters work with the MP-1200 Ultra?
It works with many inverter brands, including Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power, using RS485 communication. Your inverter must support the battery’s 12.8V system voltage. Please confirm compatibility with your exact inverter before purchase.
How long does the MP-1200 Ultra battery last?
It is rated for 6000 cycles at 80% DoD (20°C to 55°C, 0.5C, 60% EOL) and uses LiFePO4 cell technology. It is CE and UN38.3 certified.
What are the maximum charge and discharge current of the MP-1200 Ultra?
Charging is up to 50A and discharging is up to 100A. The short circuit current is approximately 1000A.
What are the charge voltage settings of the MP-1200 Ultra?
The bulk charge voltage is 14V and the float charge voltage is 13.8V. The low voltage is 12.8V and the cutoff voltage is 11.6V.

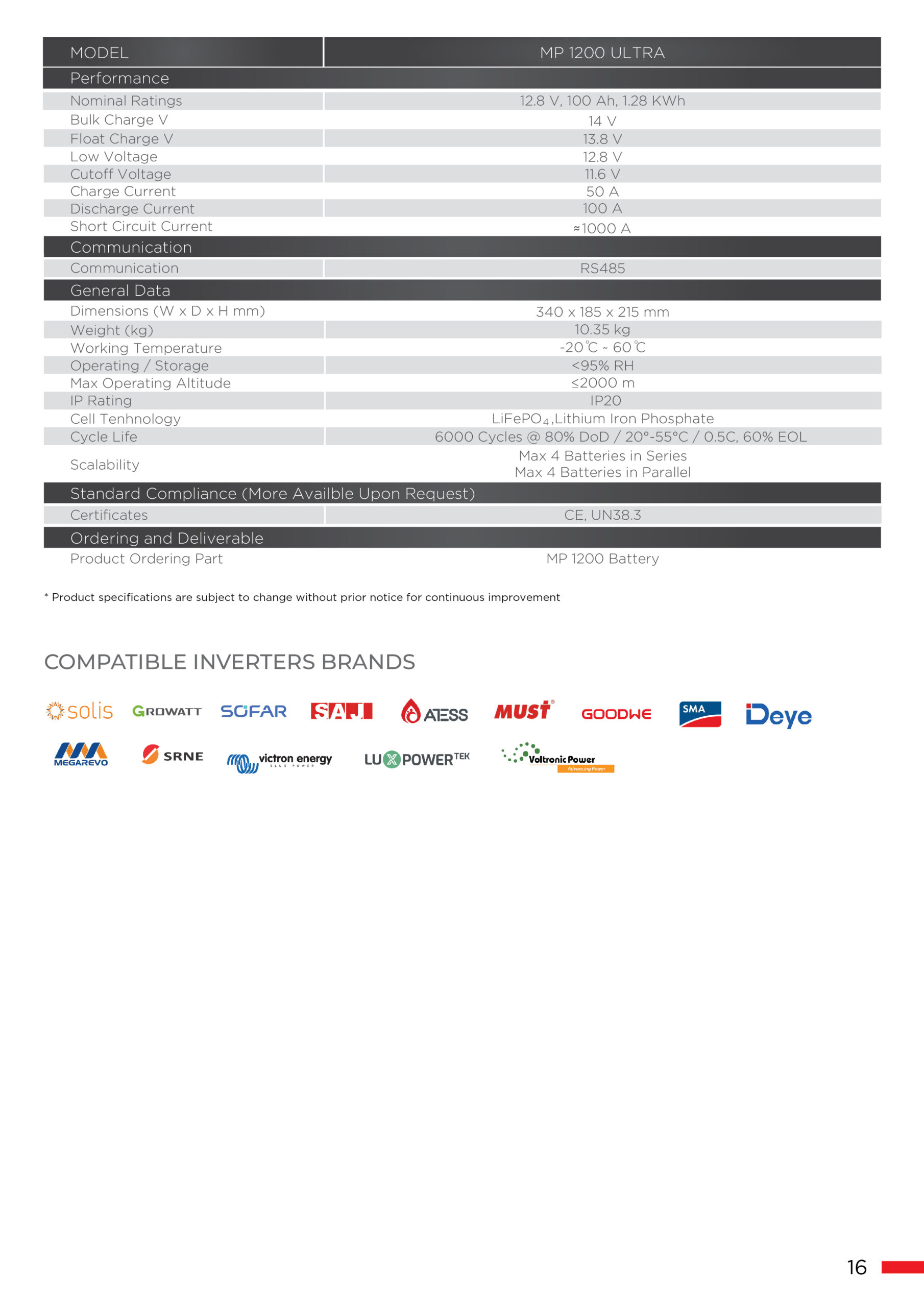

Technical Specifications
