CHF200-004-4-PV

Rated Output Power 4.0 kW

Max DC Input Current 20 A

Rated Input Current 17 A

Rated Output Current 16 A

Max DC Voltage 900 V

Start Voltage 300 V

Input Frequency 47–63 Hz

Output Frequency 0–400 Hz

Categories: VFD, CHF200 (IP20)

Description

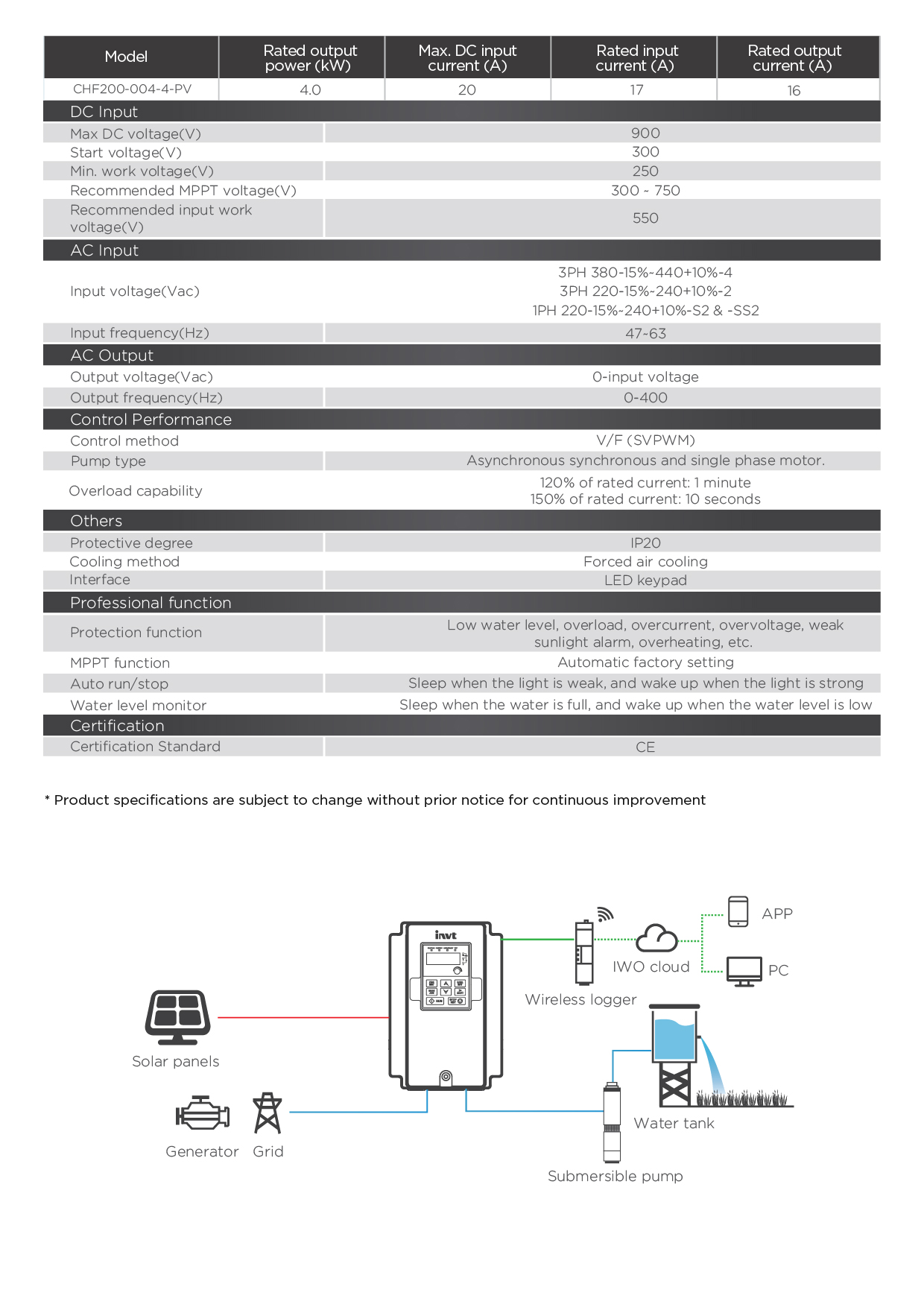

Technical Specifications

Solar Pump Inverter Pakistan solutions from Max Power Solar Energy Company help farmers, businesses, and water management projects achieve reliable and cost-effective pumping performance. The CHF200-004-4-PV Solar Pump Inverter is designed with advanced MPPT technology to maximize solar energy production and improve water pumping efficiency.

This intelligent solar pump inverter supports hybrid operation using solar PV and AC power sources, ensuring continuous performance throughout varying weather conditions. It is ideal for agricultural irrigation systems, tube wells, bore wells, livestock water supply, and commercial pumping applications.

The CHF200-004-4-PV automatically adjusts operation according to available solar energy, helping reduce electricity costs and improve system productivity. Built for Pakistan’s climate and demanding operating conditions, it delivers stable performance, equipment protection, and long-term reliability.

FAQs

Why is the CHF200-004-4-PV considered a reliable Solar Pump Inverter Pakistan?

The inverter uses advanced MPPT technology to maximize solar energy utilization, helping users achieve efficient water pumping and lower operating costs.

How does the CHF200-004-4-PV improve solar water pumping efficiency?

It continuously tracks the maximum power point of solar panels and adjusts performance automatically to deliver higher pumping output throughout the day.

Can the CHF200-004-4-PV operate with solar panels and grid electricity?

Yes, it supports hybrid PV and AC operation, providing uninterrupted performance during changing sunlight conditions.

Is the CHF200-004-4-PV suitable for agricultural irrigation systems?

Yes, it is widely used for farms, tube wells, irrigation networks, and water supply projects that require dependable solar-powered pumping.

Why do solar energy companies recommend MPPT solar pump inverters?

MPPT solar pump inverters improve energy conversion efficiency, reduce power losses, and increase overall water pumping performance for renewable energy systems.
