Suntronic PV 5500 Ultra
August 30, 2025HP-5000-H-High Voltage
Nominal Capacity: 102Ah
Battery Energy: 10.44kWh – 62.64kWh
Nominal Voltage: 102.4V – 614.4V
Charge / Discharge Current: 100A / 100A
Cycle Life: 6000 Cycles @ 80% DoD
Scalability: Max 16 Piles in Parallel
Ingress Protection: IP20

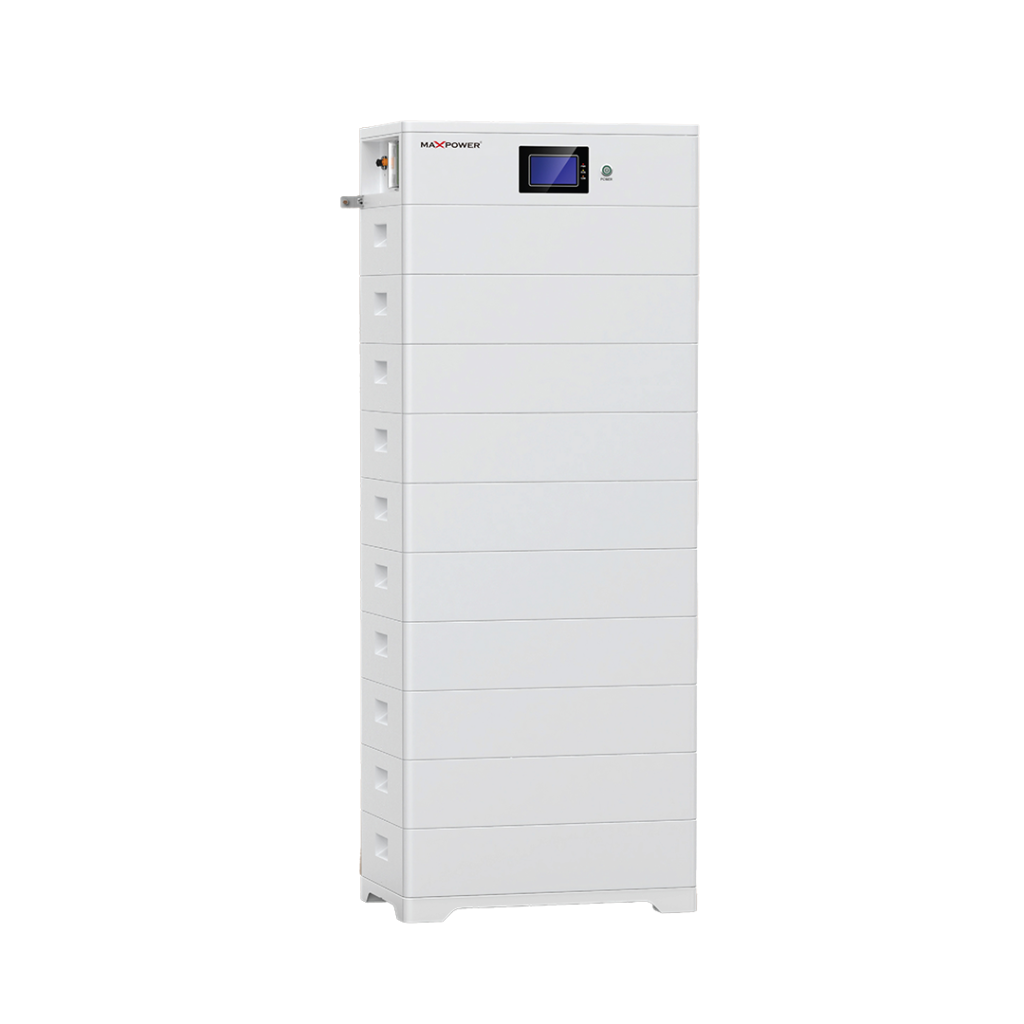

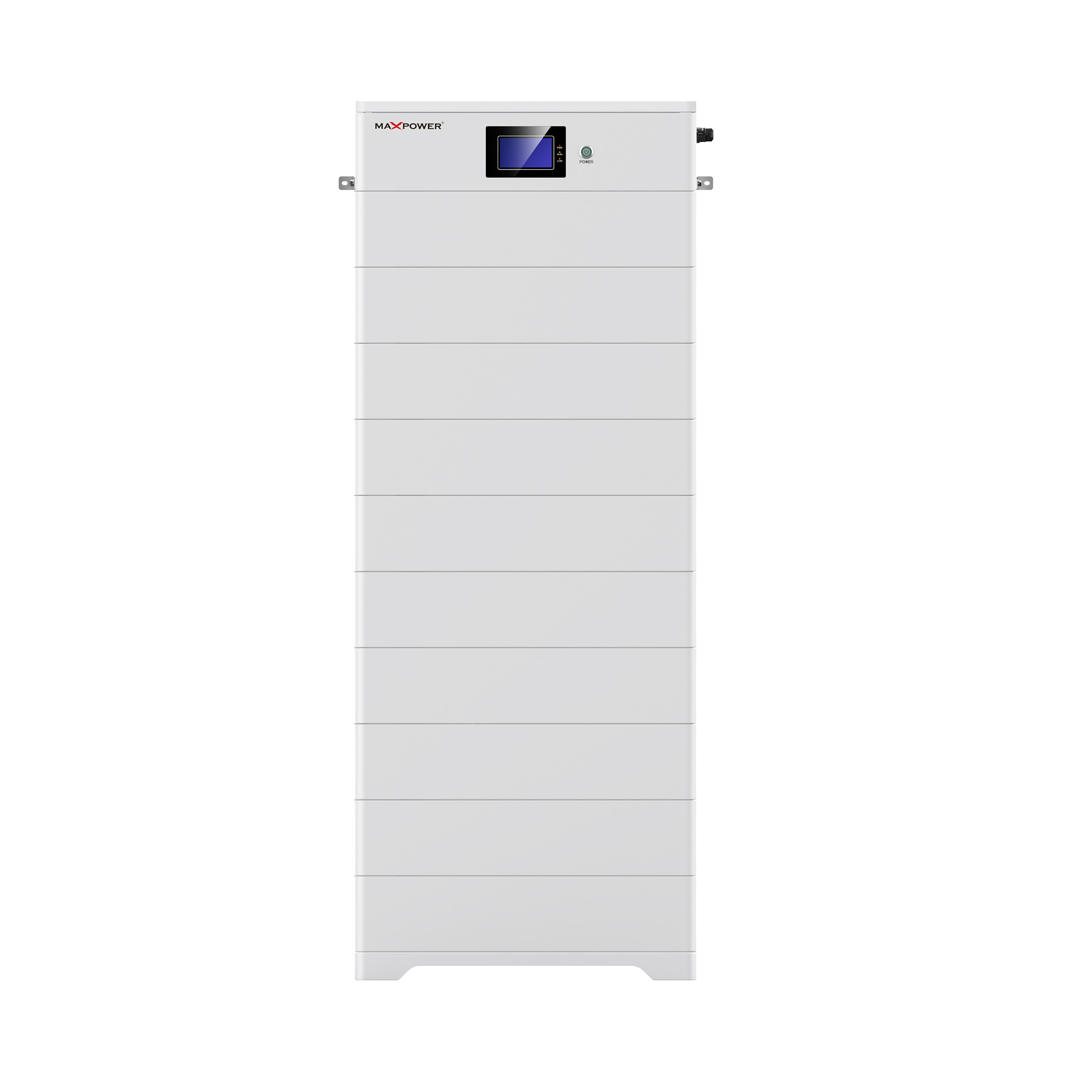

The Maxpower HP 5000-H is a modular high-voltage LiFePO4 (Lithium Iron Phosphate) lithium battery for solar energy systems in Pakistan, suited to large homes, offices and commercial installations. Each model stacks battery modules into a floor-stand tower, from 10.44kWh (HP 5000-H2) up to 62.64kWh (HP 5000-H12), and you can connect up to 16 piles in parallel (about 1002kWh in total with 16 H12 piles) for large commercial projects. See the full lithium battery range for other options.
All models share a nominal capacity of 102Ah, a charge current of 100A and a discharge current of 100A, with charge power from 5.12kW to 30.72kW and discharge power from 8.19kW to 49.15kW depending on the model. It is rated for 6000 cycles at 80% DoD (20°C to 55°C, 1C, 60% EOL). It charges at 0°C to 55°C and discharges at -20°C to 55°C.
With a 4.3 inch (16:9) touch screen and CAN communication, it connects to a compatible high-voltage hybrid inverter. It has an IP20 rating, so it is meant for indoor installation. It is CE and UN38.3 certified. It works with many inverter brands, including Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power, as long as the inverter supports the battery’s voltage range. Browse Maxpower’s hybrid solar inverters to find a matching high-voltage inverter.
Frequently Asked Questions
What is the HP 5000-H high-voltage lithium battery used for?
The HP 5000-H is used for solar energy storage in homes, offices and commercial solar setups. With a compatible high-voltage hybrid inverter, it provides backup power during load shedding.
What is the capacity range of the HP 5000-H battery?
The series ranges from 10.44kWh (H2) to 62.64kWh (H12) per pile, and you can connect up to 16 piles in parallel for larger projects. All models have a nominal capacity of 102Ah.
What is the price of the HP 5000-H lithium battery in Pakistan?
The price depends on the model (H2 to H12) and your system size. Contact Maxpower for the latest price and quotation.
Which inverters work with the HP 5000-H?
It works with many inverter brands, including Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power, using CAN communication. It is a high-voltage battery, so it needs a high-voltage hybrid inverter whose battery voltage range covers the model you choose. Please confirm compatibility with your exact inverter before purchase.
How do I choose the right HP 5000-H model?
Choose the model by capacity and by voltage. Each model has its own operating voltage range (for example H6: 249.6V to 340.8V), which must fit inside your inverter’s battery voltage range. Capacity should match your backup hours and load.
Can the HP 5000-H be installed outdoors?
No. It has an IP20 rating, so it should be installed indoors in a dry, ventilated place, away from dust and water. It is designed a

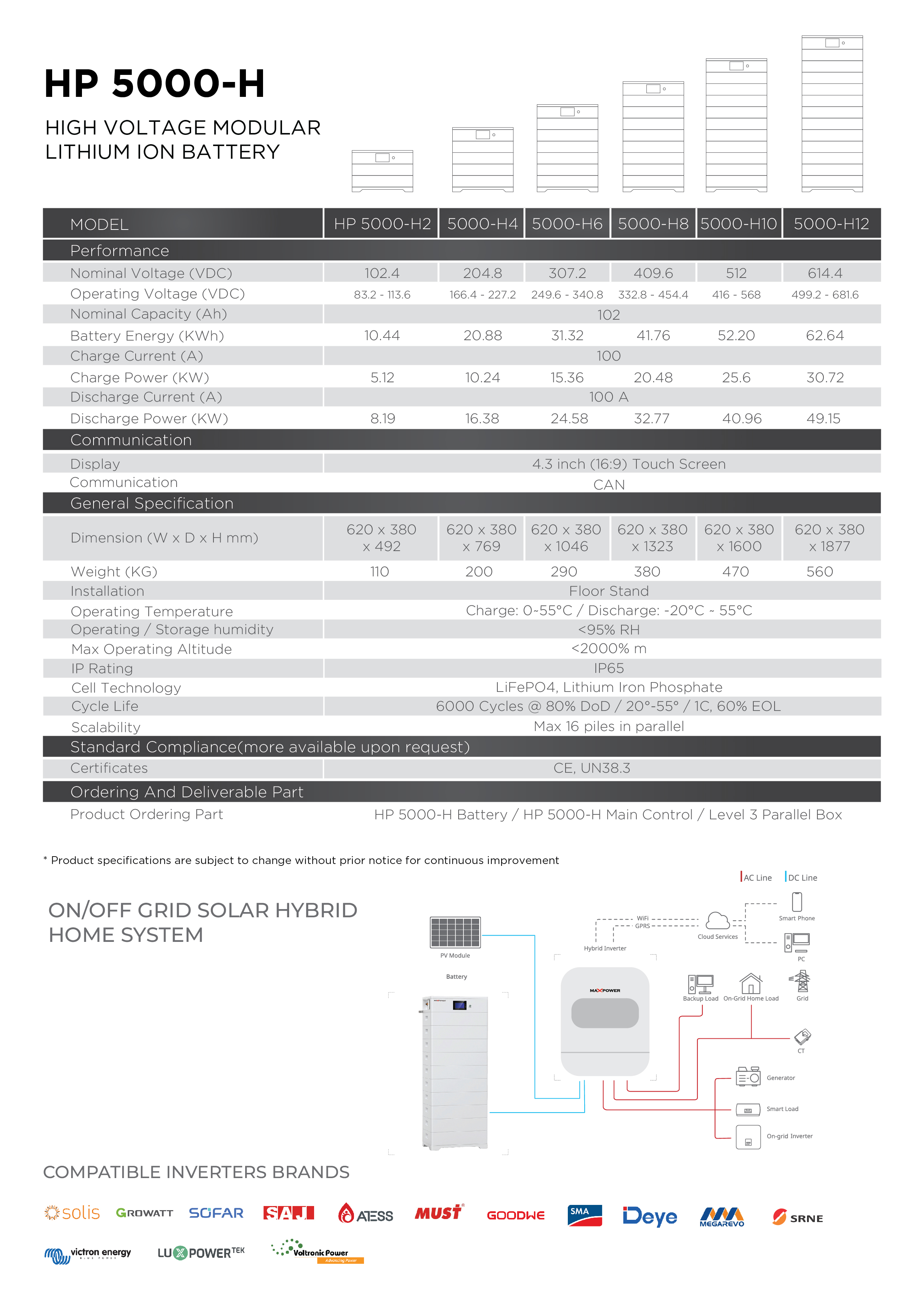

Technical Specifications

Technical Setting Video
Step-by-Step Instructions for High Voltage Lithium-Ion Battery Setup – Check Out the Links Below!
