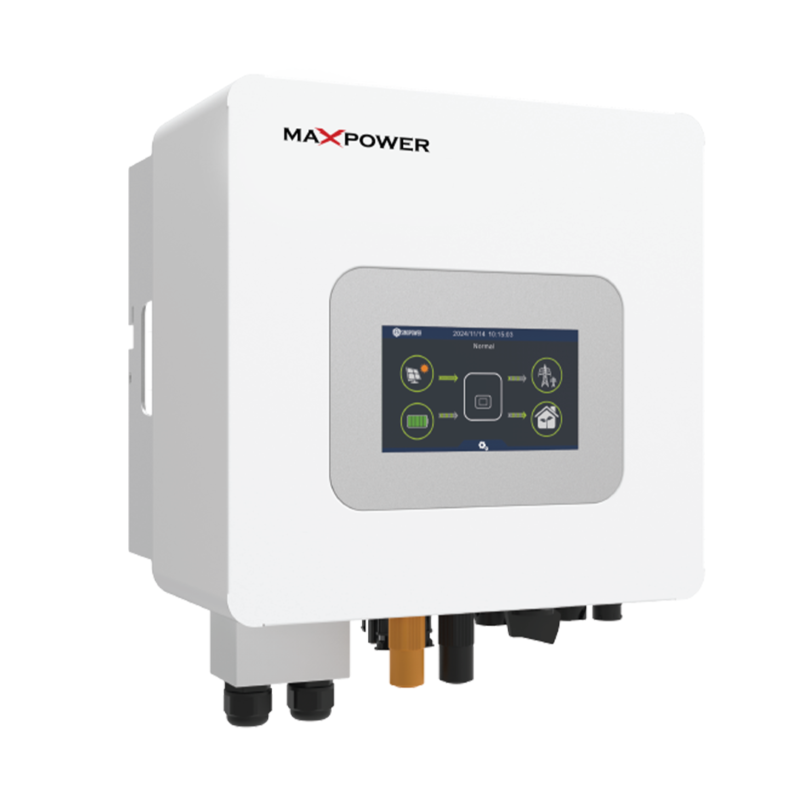

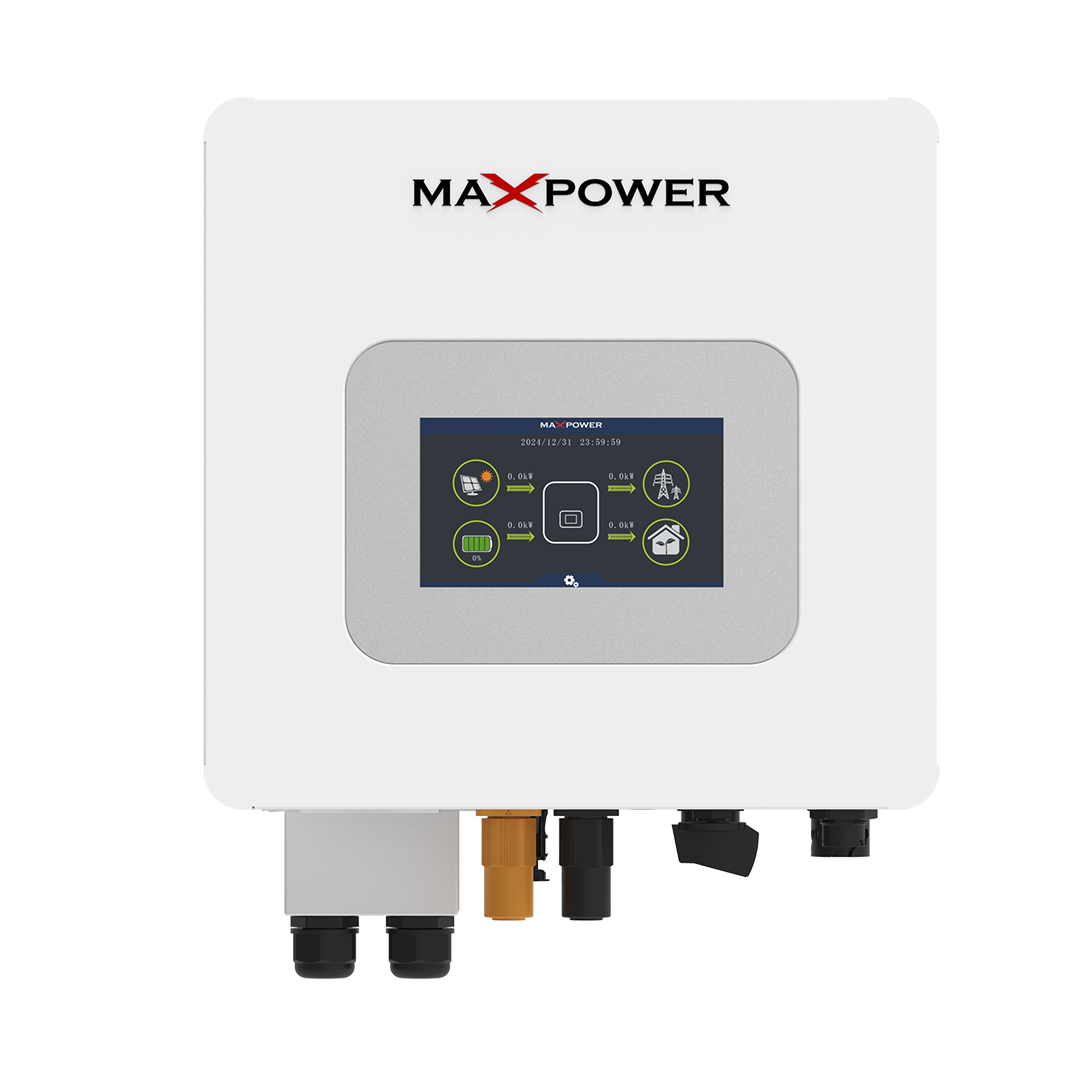

Voltas HYD 6K-H6

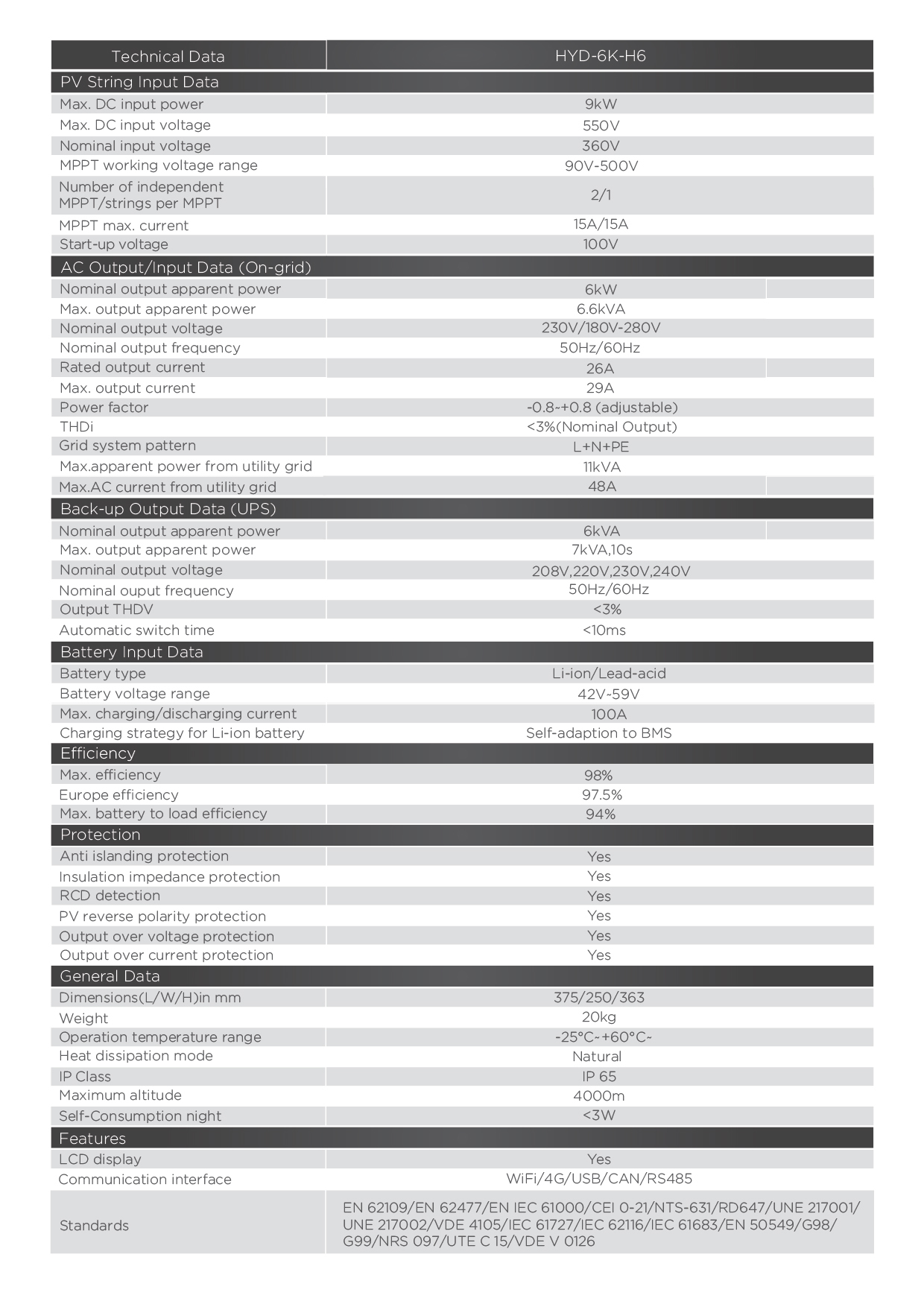

Max. DC input power: 9 kW

Max. DC input voltage: 550V

Nominal input voltage: 360V

MPPT working voltage range: 90V – 500V

Number of independent MPPT / strings per MPPT: 2 / 1

MPPT max. current: 15A / 15A

Start-up voltage: 100V

Nominal output apparent power: 6 kW

Max. output apparent power: 6.6 kVA

Nominal output voltage: 230V / 180V – 280V

Nominal output frequency: 50Hz / 60Hz

Rated output current: 26A

Max. output current: 29A

Power factor: -0.8 to +0.8 (adjustable)

THDi: <3% (Nominal Output)

Grid system pattern: L + N + PE

Max. apparent power from utility grid: 11 kVA

Max. AC current from utility grid: 48A
