September 15, 2025Voltas 10K-H4
Max. DC Input Power: 15,000W
PV Input Voltage: 370V (125V – 500V)
MPPT Voltage Range: 150V – 425V
Max. PV Short Circuit Current: 34A per MPPT
Rated AC Output Power: 10,000W
Max. Charge / Discharge Current: 210A
Protection Degree: IP65
Warranty: 5 Years

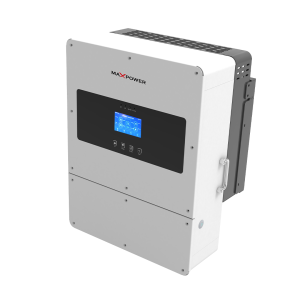

The Voltas 10K-H4 is a 10kW single-phase hybrid solar inverter in Pakistan that supports efficient energy management in large homes, offices and small commercial setups. With 15,000W of DC input power, it ensures robust energy conversion and supports an MPPT range of 150V to 425V and a PV input voltage of 370V (125V to 500V). It has 2 MPPT trackers with 2 strings each, a PV input current of 26A + 26A and a maximum PV short-circuit current of 34A + 34A, with a start-up voltage of 120V.
The rated AC output and UPS power is 10,000W (12,000W maximum), and a peak power of 1.8 times the rated power for 10 seconds off-grid helps during load spikes. The inverter offers Li-ion battery support with self-adaption to the BMS (CAN / RS485) and also supports lead-acid batteries, within a 40V to 60V battery voltage range. It allows a maximum charge and discharge current of 210A and uses a 3-stage charging curve with equalization, with an optional external temperature sensor.
Built with PV input lightning protection, anti-islanding, reverse polarity protection, insulation resistor detection, residual current monitoring, output over-current and short-circuit protection and DC Type II / AC Type III surge protection, it is designed for reliable operation in diverse conditions, with PV ARC fault detection available as an option. With a maximum efficiency of 97.9%, 99.9% MPPT efficiency and an IP65 rating, it is a wall-mounted, smart-cooled unit (34kg) built for durable, dependable performance. It comes with a 5-year warranty. Explore more hybrid solar inverters from Maxpower.
Frequently Asked Questions
What makes the Voltas 10K-H4 a good choice for solar energy systems?
The Voltas 10K-H4 Single-Phase Hybrid Inverter offers up to 97.9% efficiency, 15kW PV input capacity and dual MPPT technology. It helps homeowners and businesses maximize solar energy production while reducing electricity costs.
What is the price of the Voltas 10K-H4 Single-Phase Hybrid Inverter in Pakistan?
The price depends on installation requirements, warranty coverage and supplier availability. Contact Maxpower for the latest price and quotation.
Does the Voltas 10K-H4 support lithium batteries?
Yes, the inverter supports both lithium-ion and lead-acid batteries (40V to 60V), with a maximum charge / discharge current of 210A. For Li-ion batteries, the charging strategy self-adapts to the battery’s BMS.
Can the Voltas 10K-H4 work during load shedding?
Yes, when connected to a compatible battery system, the inverter can provide back-up power (10,000W rated, 1.8 times peak for 10 seconds) during load shedding and power outages.
Is the Voltas 10K-H4 suitable for residential and commercial use?
The Voltas 10K-H4 is a good fit for homes, offices, shops and small commercial setups. Its 10kW capacity and 15kW PV input make it suitable for medium to large solar energy installations.
Can the Voltas 10K-H4 be used for net metering in Pakistan?
Yes, it is a grid-connected hybrid inverter and can be used in net metering setups. Please confirm the current approval requirements with your distribution company (DISCO) before installation.
What warranty does the Voltas 10K-H4 come with?
The Voltas 10K-H4 comes with a 5-year warranty.
Technical Specifications

Technical Setting Video
Step-by-Step Instructions for Voltas Hybrid Inverter Setup – Check Out the Links Below!
