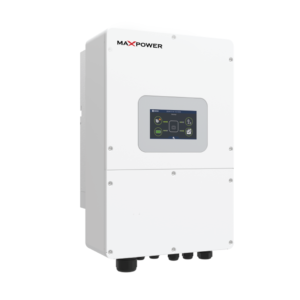

Voltas HYD 10K-H6 Pro Single Phase Inverter
Voltas HYD 10K-H6 Pro Single Phase Inverter - Image 2

Voltas HYD 10K-H6 Pro Single Phase Inverter

  • Support Only Single Source Output like Only Solar

  • Max. DC input power: 15000W

  • Max. DC input voltage: 600V

  • MPPT working voltage range: 90V – 500V

  • Number of independent MPPT/strings per MPPT: 4/1

  • MPPT max. current: 20×4A

  • Start-up voltage: 100V

Categories: , ,
The Voltas HYD-10K-H6 Single-Phase Hybrid Inverter is built for high performance and dependability, making it perfect for residential and commercial use. This sophisticated inverter supports dual output and enables seamless operation in both on-grid and off-grid configurations. It is a versatile option for those aiming to maximize their energy efficiency.
The inverter is compatible with lead-acid and Li-ion batteries and operates within a 40-60 V voltage range. It provides a maximum charge and discharge current of 200 A, supporting effective energy management. Its charging strategy includes a 3-stage charging curve and optional external temperature sensors for enhanced performance and battery care.
With a maximum DC input power of 15,000 W and a PV input voltage of 600 V, this inverter is designed to handle a wide range of solar setups. It features four MPPT trackers, each supporting one string, and a startup voltage of 100 V. The inverter delivers a rated AC output power of 10,000 W, with a peak power capability of up to 11,000 VA for 10 seconds during off-grid conditions.

Frequently Asked Questions

What are the key features of the Voltas HYD 10K-H6 Pro Single Phase Inverter?

The Voltas HYD 10K-H6 Pro is a 10kW hybrid solar inverter featuring 4 independent MPPT trackers, up to 15,000W PV input capacity, battery compatibility, and both on-grid and off-grid operation.

Is the Voltas HYD 10K-H6 Pro suitable for large homes and commercial solar systems?

Yes, with a rated AC output power of 10,000W and support for high solar input capacity, it is ideal for large residential properties, offices, and small commercial installations.

Does the Voltas HYD 10K-H6 Pro support lithium and lead-acid batteries?

Yes, the inverter is compatible with both lithium-ion and lead-acid batteries, allowing flexible energy storage options based on your budget and energy requirements.

Can the Voltas HYD 10K-H6 Pro provide backup power during load shedding?

Yes, the inverter supports hybrid functionality and can supply backup power during grid outages when connected to a compatible battery bank.

Why is the Voltas HYD 10K-H6 Pro considered a top hybrid solar inverter in Pakistan?

The inverter offers 4 MPPT technology, 15kW solar input support, battery backup, high conversion efficiency, and advanced energy management features, making it a popular choice for residential and commercial solar systems in Pakistan.

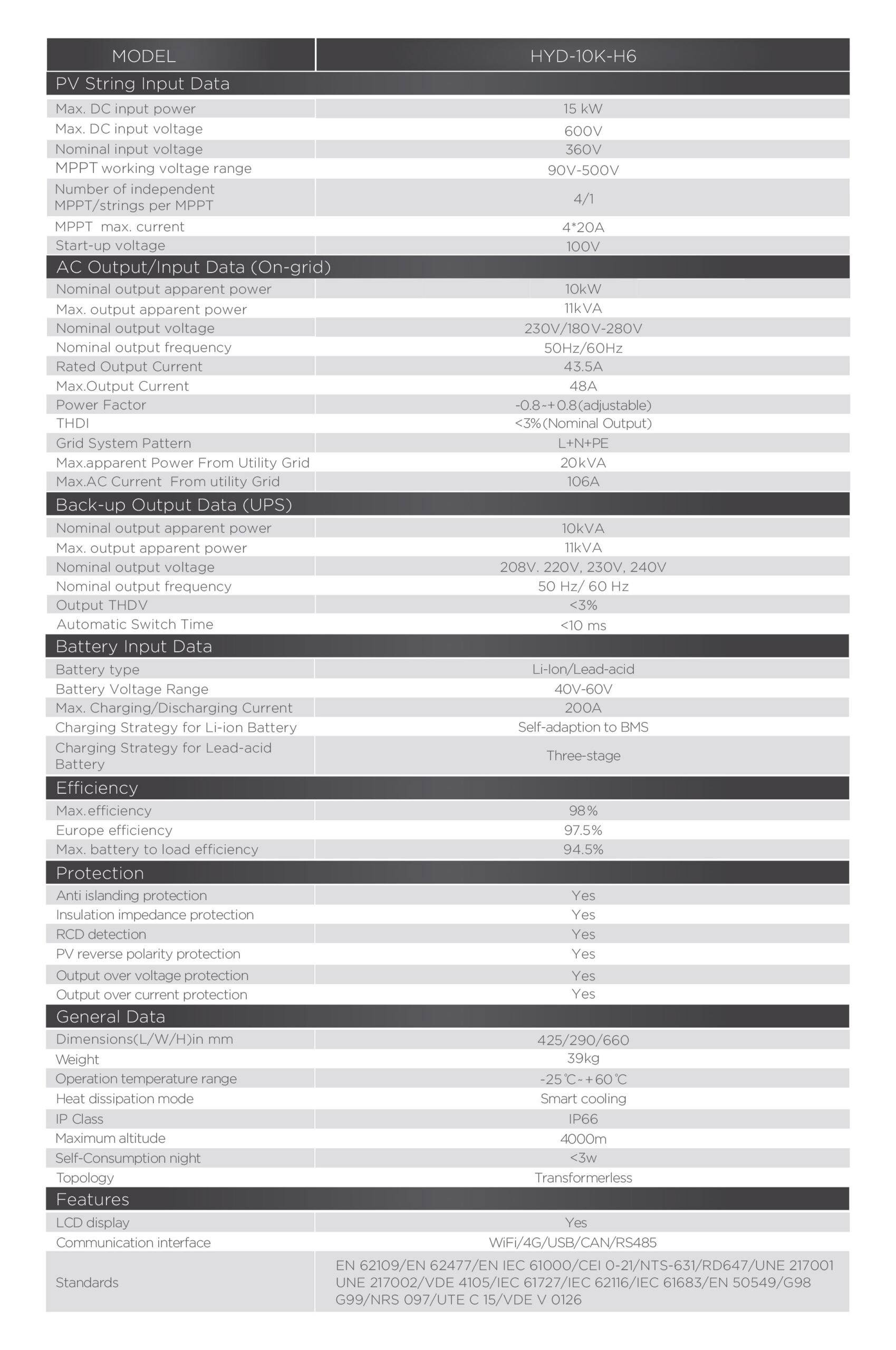

Technical Specifications
