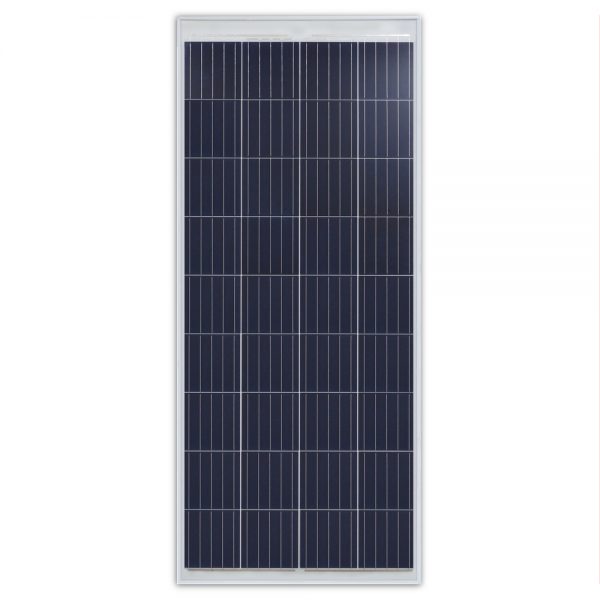

MaxPower 170W Polycrystalline Solar Panel
Monocrystalline Silicon Technology
Nominal Output: 170 W
Open Circuit Voltage: 23.98 V
Short Circuit Current: 8.97 A
Maximum System Voltage: 1000 VDC
Number of Cells: 36
Dimensions: 1552 mm x 678 mm x 30 mm
Weight: 11.0 kg
The MaxPower 170W Polycrystalline Solar Panel is an excellent choice for those seeking reliable solar energy solutions. Built with polycrystalline silicon technology, it provides efficient energy conversion, making it one of the best solar panels in Pakistan for various applications.
This panel features 36 cells, measures 1552 mm x 678 mm x 30 mm, and weighs 11.0 kg. It has a nominal output of 170 W, an open circuit voltage of 23.98 V, and a short circuit current of 8.97 A. It has a maximum system voltage of 1000 VDC and an IP65-rated junction box for enhanced safety.
Operating efficiently between -40°C to +85°C, it has a maximum surface load capacity of 5400 Pa. The MaxPower 170W panel is perfect for residential, commercial, and industrial applications, showcasing the quality and reliability of one of Pakistan’s leading solar energy companies.

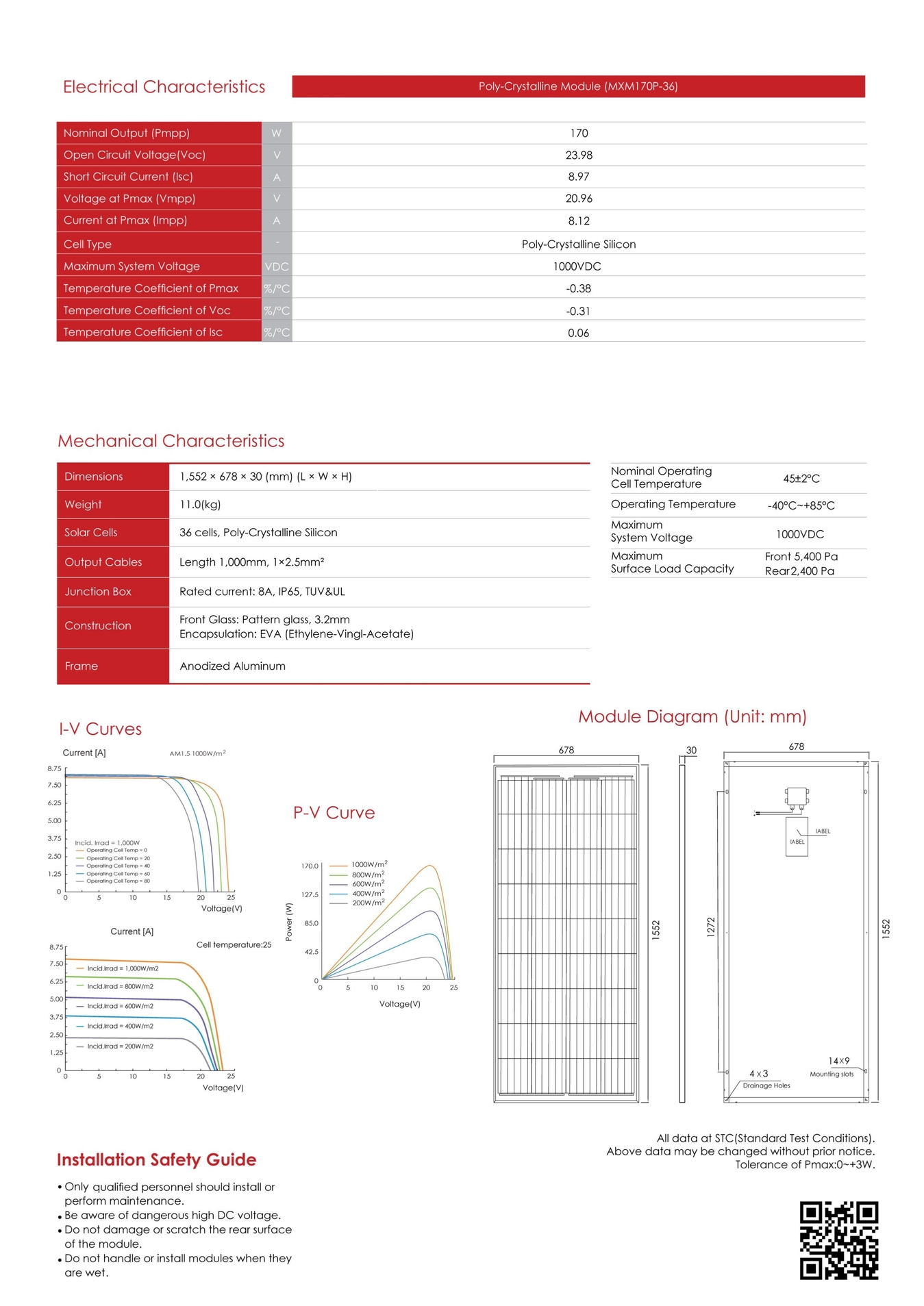

Technical Specification
| MODEL | Polycrystalline Module (MXM170P-36) |
| Electrical Characteristics | |
| Nominal Output (Pmpp) | 170W |
| Open Circuit Voltage (Voc) | 23.98V |
| Short Circuit Current (lsc) | 8.97A |
| Voltage at Pmax (Vmpp) | 20.96V |
| Current at Pmax (Impp) | 8.12A |
| Cell Type | Polycrystalline Silicon |
| Maximum System Voltage | 1000VDC |
| Temperature Co-efficient of Pmax | -0.38%/°C |
| Temperature Co-efficient of Voc | -0.31%/°C |
| Temperature Co-efficient of Ioc | 0.06%/°C |
| Mechanical Characteristics | |
| Dimensions | 1,552 x 678 x 30 mm (L x W x H) |
| Weight | 11.0 kg |
| Solar Cells | 36 cells, Polycrystalline Silicon |
| Output Cables | length 1000mm, 1.25mm2 |

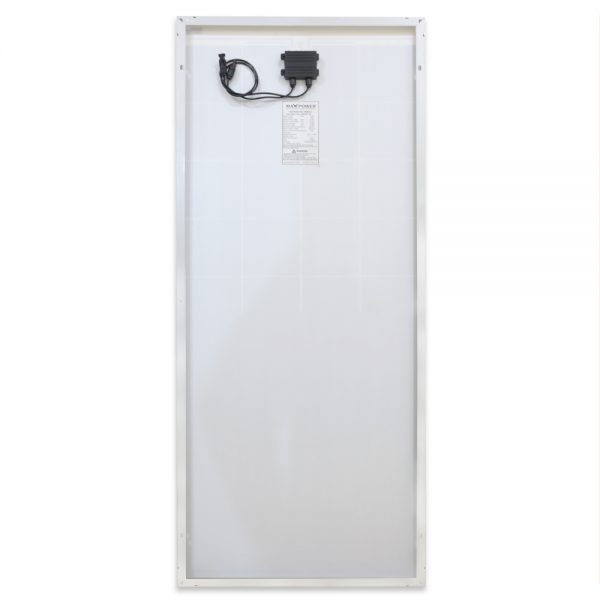

| Junction Box | Rated current: 8A, IP65, TUV & UL |
| Construction | Front Glass: Pattern glass, 3.2mm Encapsulation: EVA (Ethylene-Vingl-Acelate) |
| Frame | Anodized Aluminium |
| Nominal Operating Cell Temperature | 45±2°C |
| Operating Temperature | -40°C ~ +85°C |
| Maximum System Voltage | 1000VDC |
| Maximum Surface Load Capacity | Front 5400 Pa Rear 2400 Pa |
