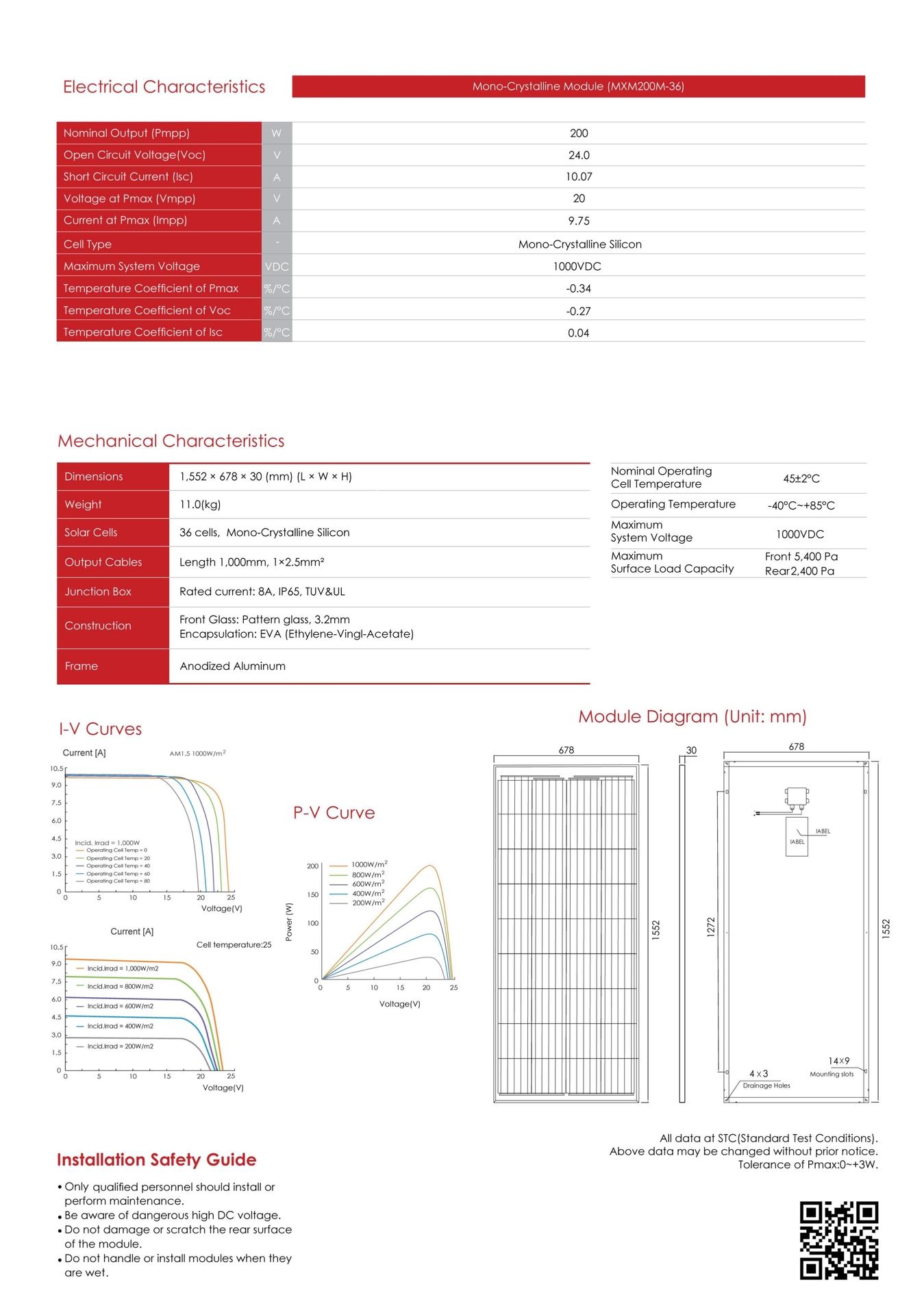

Technical Specification
| MODEL | Monocrystalline Module (MXM200P-36) |
| Electrical Characteristics | |
| Nominal Output (Pmpp) | 200W |
| Open Circuit Voltage (Voc) | 24.0V |
| Short Circuit Current (lsc) | 10.07A |
| Voltage at Pmax (Vmpp) | 20V |
| Current at Pmax (Impp) | 9.75A |
| Cell Type | Monocrystalline Silicon |
| Maximum System Voltage | 1000VDC |
| Temperature Co-efficient of Pmax | -0.34%/°C |
| Temperature Co-efficient of Voc | -0.27%/°C |
| Temperature Co-efficient of Ioc | 0.04%/°C |
| Mechanical Characteristics | |
| Dimensions | 1,552 x 678 x 30 mm (L x W x H) |
| Weight | 11.0 kg |
| Solar Cells | 36 cells, Monocrystalline Silicon |
| Output Cables | length 1000mm, 1.25mm2 |
| Junction Box | Rated current: 8A, IP65, TUV & UL |
| Construction | Front Glass: Pattern glass, 3.2mm Encapsulation: EVA (Ethylene-Vingl-Acelate) |
| Frame | Anodized Aluminium |
| Nominal Operating Cell Temperature | 45±2°C |
| Operating Temperature | -40°C ~ +85°C |
| Maximum System Voltage | 1000VDC |
| Maximum Surface Load Capacity | Front 5400 Pa Rear 2400 Pa |
