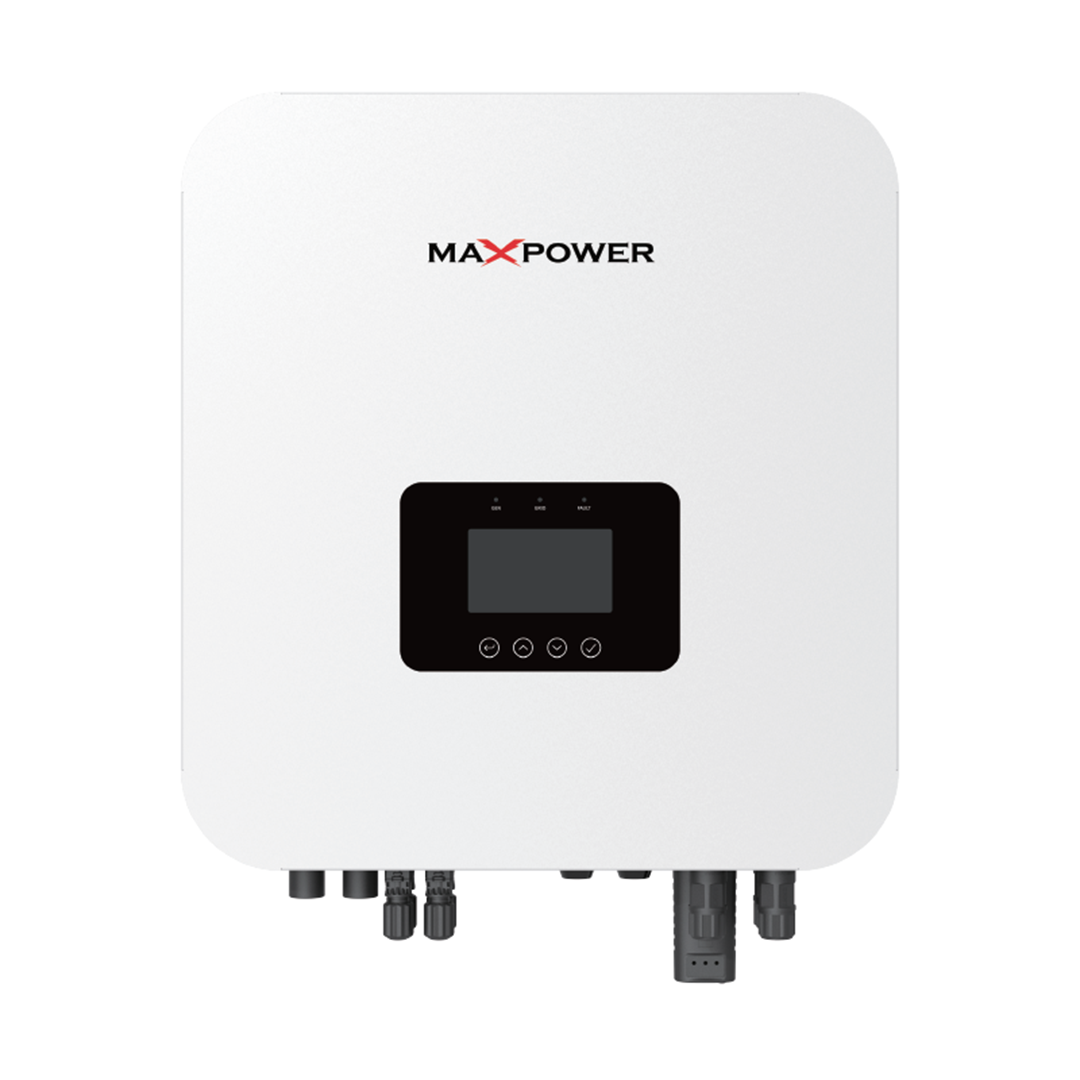

HYD-6K-H8

Max. PV Input Power: 9 kW

Max. PV Open Circuit Voltage: 550V

MPPT Operating Voltage Range: 80 – 520V

Full Power MPPT Voltage Range: 250 – 500V

Start-up Voltage: 90V

Max. Input Current per MPPT: 19A / 19A

Max. Short-circuit Current: 25A / 25A

MPPT Trackers / Strings per Tracker: 2 / 1

Nominal Input Voltage: 360V

Nominal Output Power to Grid: 6 kW

Max. Apparent Power to Grid: 6 kVA

Max. Apparent Power from Grid: 6 kVA

Nominal Output Current from Grid: 26.1A

Max. Output Current to Grid: 26.1A
