PV Tech 1200

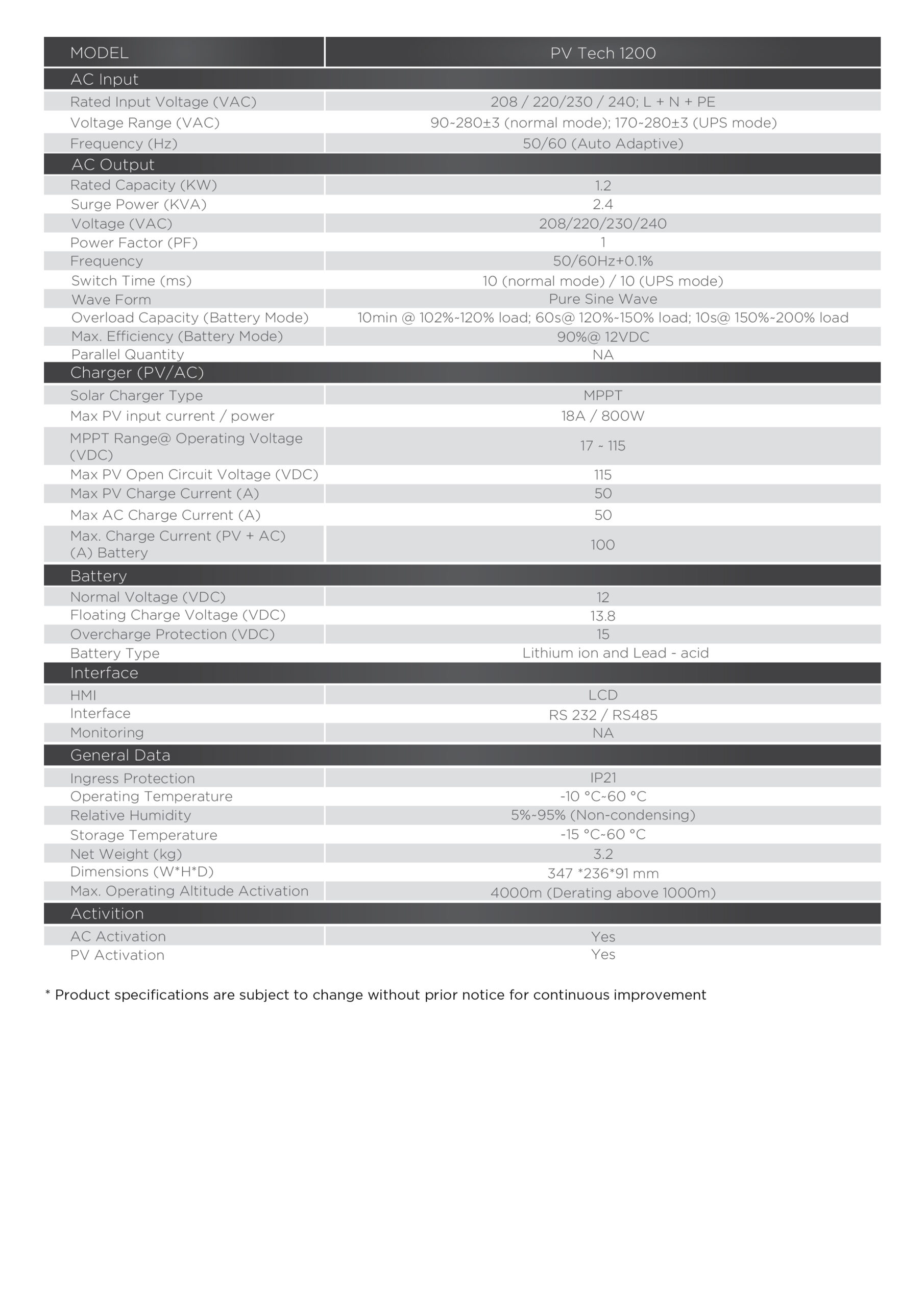

PV Tech 1200 is a compact, efficient solar inverter designed for small-scale energy needs, delivering a rated capacity of 1.2 kW with a 2.4 kVA surge capability and pure sine wave output for stable performance. It features a fast 10 ms transfer time and maintains reliable operation across a wide input voltage range with auto-adaptive 50/60 Hz frequency support. Equipped with an MPPT solar charger, it supports up to 1000W PV input with 12A current and an MPPT tracking range of 18–100 VDC, ensuring optimal solar energy harvesting.

The 12V battery system is compatible with both lithium-ion and lead-acid batteries, offering 13.8V float charging and 15V overcharge protection. The inverter includes an LCD interface with RS232/RS485 communication options and offers both AC and PV activation modes. Designed for durability, it carries IP21 protection, operates from –10°C to 50°C, and maintains performance up to 4000m altitude, all housed in a lightweight 3.2 kg structure with compact dimensions of 347×236×91 mm.

Frequently Asked Questions (PV Tech 1200 – Solar Energy)

What is PV Tech 1200 used for in solar energy systems?
PV Tech 1200 is a small solar inverter designed for basic home backup, LED lights, fans, and low-power appliances using solar energy.

Can PV Tech 1200 run on solar panels only?
Yes, it can operate using solar panels with a battery system, making it suitable for off-grid and backup solar setups.

Is PV Tech 1200 good for reducing electricity bills?
Yes, it helps reduce electricity bills by using solar energy during the day and battery power at night or during load shedding.

What type of batteries are compatible with PV Tech 1200?
It supports lead-acid batteries and in some setups may also work with small lithium battery systems depending on configuration.

Is PV Tech 1200 suitable for home solar setup in Pakistan?
Yes, it is ideal for small homes, shops, and basic solar setups where low power backup and energy saving are required.
