SOLAR INVERTER
CHF200-011-4-PV
January 15, 2025
hyd-100k-h6
HYD-100K-H6
February 24, 2026
Show all

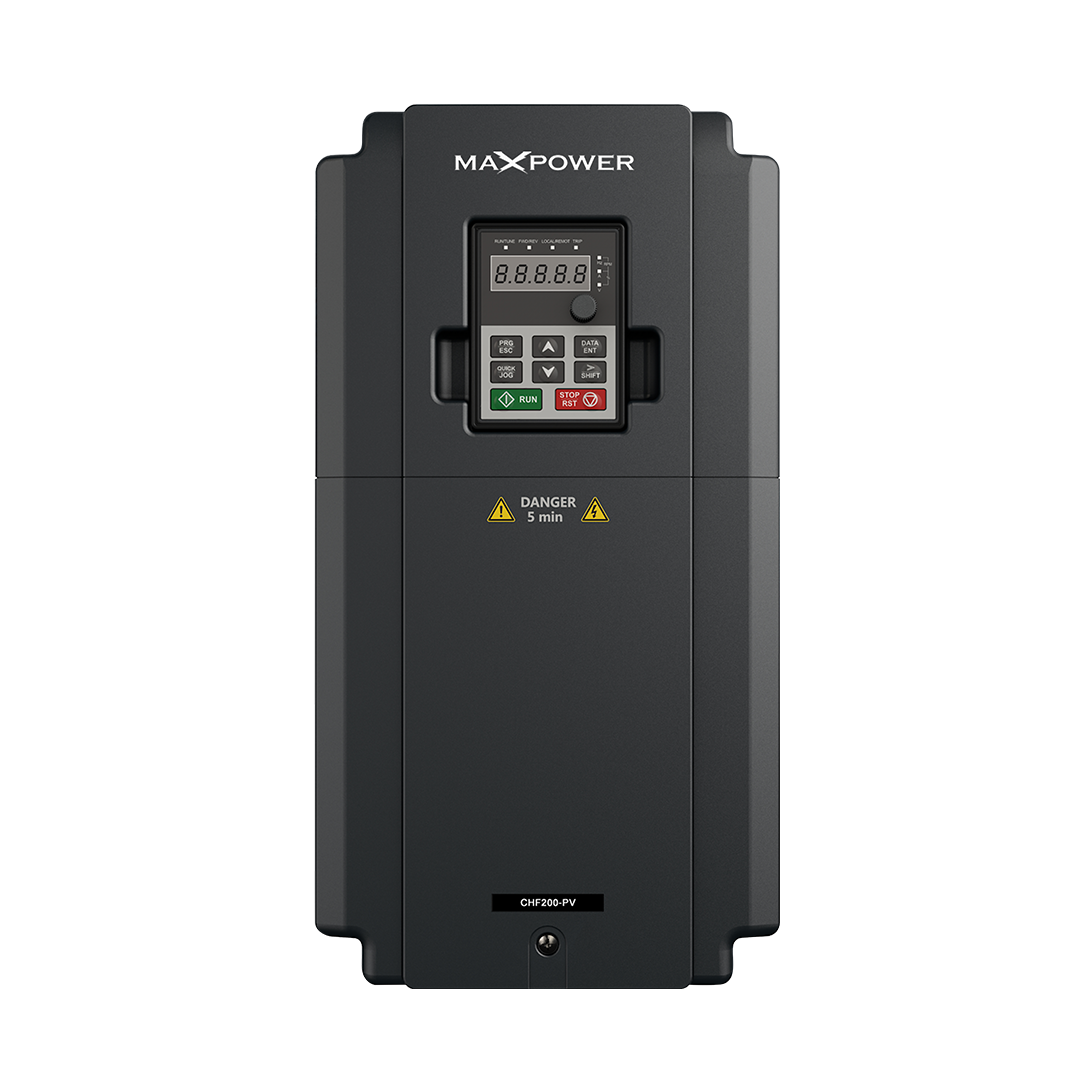

CHF200-011-4-PV

  • Hybrid operation (AC supply & PV supply)
  • Advanced MPPT algorithms
    Rated Output Power 11 kW
  • Max. DC Input Current 39.2 A
  • High efficiency and stability
  • Rated Input Current 32 A
  • Max DC Voltage 900 V
  • Effective protection function
  • Recommended MPPT Voltage 300 – 750 V
  • Intelligent IoT
  • Drive multi types of pumps (PMSM, AM, Single phase motors, etc.)
Categories: ,

Engineered for sustainable agriculture and renewable energy applications, the CHF200-015-4-PV Solar Pump Inverter delivers intelligent solar water pumping performance for farms, irrigation systems, tube wells, and commercial water projects. Designed with advanced MPPT technology, it maximizes solar energy utilization by continuously tracking the optimal power point of connected solar panels.

The CHF200-015-4-PV helps reduce electricity costs while improving water pumping efficiency, making it a practical solution for areas seeking reliable and cost-effective energy alternatives. Its hybrid PV and AC operation ensures stable performance even during changing sunlight conditions, helping maintain uninterrupted water flow when it matters most.

Frequently Asked Questions

How does the CHF200-015-4-PV improve solar water pumping efficiency?

The inverter uses advanced MPPT technology to continuously optimize solar power generation, helping pumps operate efficiently and deliver maximum water output.

Is CHF200-015-4-PV suitable for agricultural irrigation systems?

Yes, it is designed for irrigation systems, tube wells, bore wells, and farming applications where reliable solar-powered water pumping is required.

Can the CHF200-015-4-PV work during low sunlight conditions?

Yes, its hybrid PV and AC operation allows continuous performance by utilizing alternative power sources when solar energy levels decrease.

Why is a solar pump inverter important for renewable energy projects?

A solar pump inverter converts solar energy into efficient motor control, helping reduce electricity costs while supporting sustainable water management.

What applications are best suited for the CHF200-015-4-PV Solar Pump Inverter?

The inverter is ideal for farms, livestock water systems, irrigation networks, commercial water supply projects, and renewable energy pumping installations.

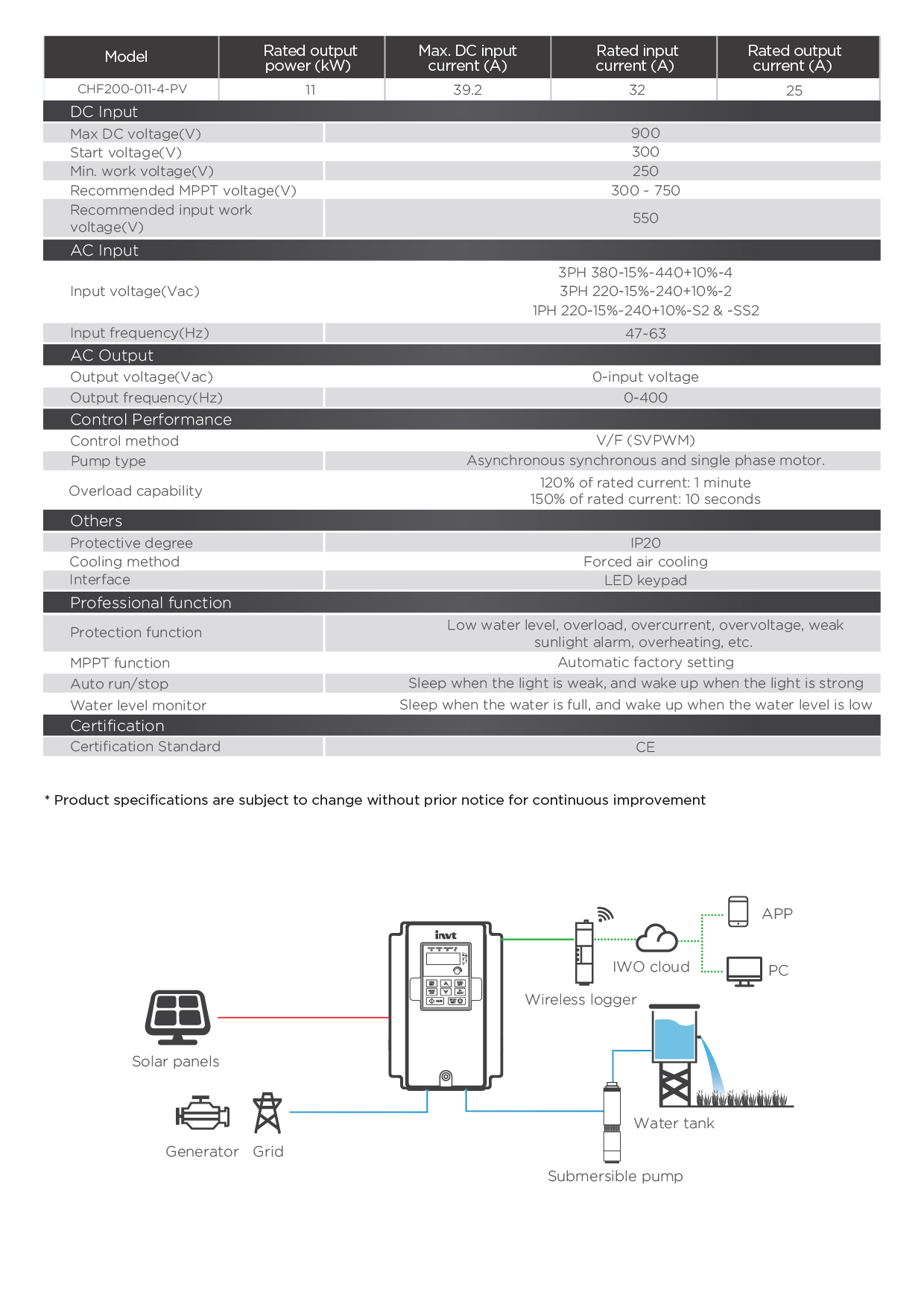

Technical Specifications

CHF200 011 4 PV
