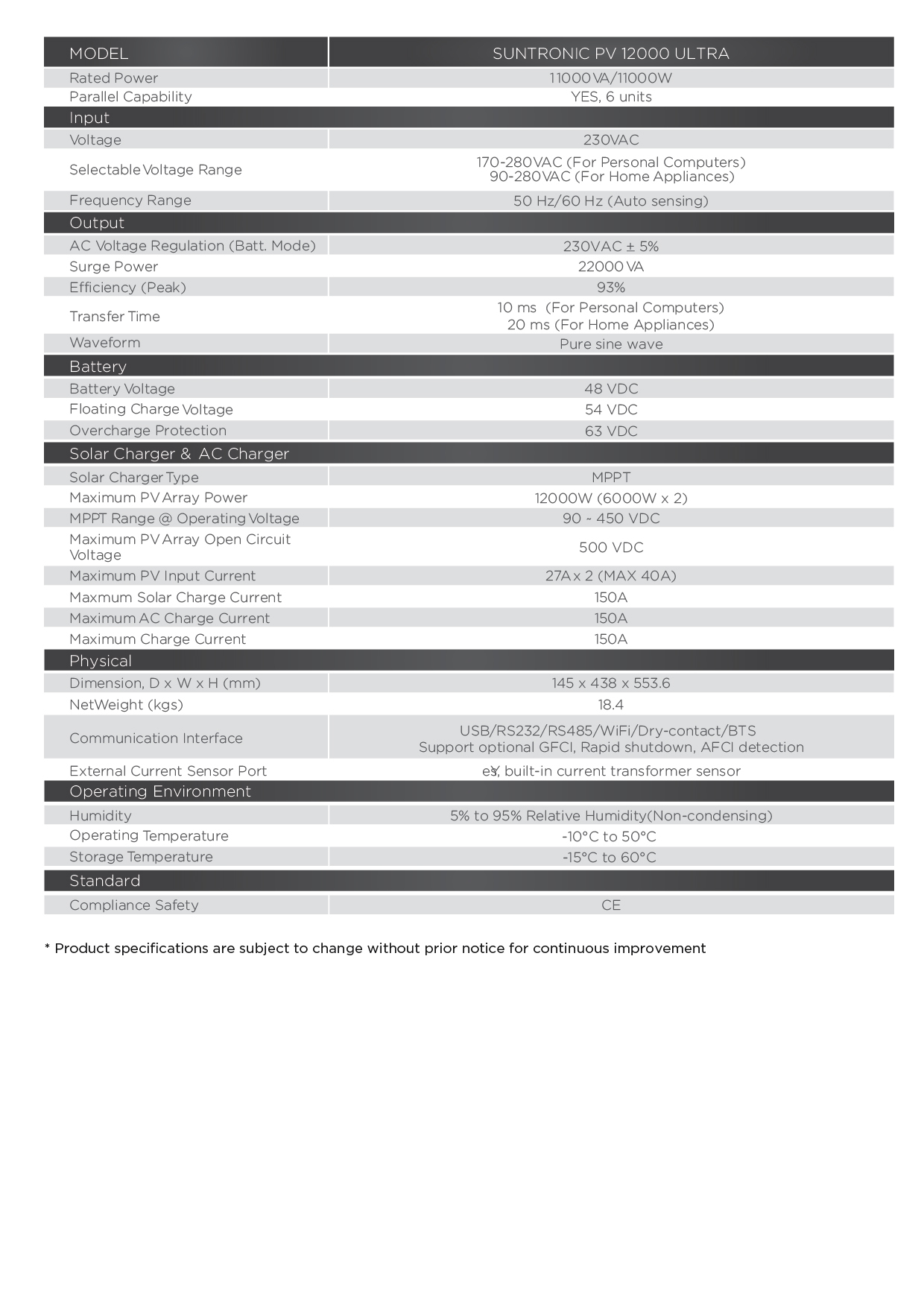

Suntronic PV 12000 Ultra

The Suntronic PV 12000 Ultra is a cutting-edge solar inverter for exceptional energy management. It boasts a rated power of 11000VA/11000W and can be connected in parallel with up to six units. It operates at an input voltage of 230 VAC, providing selectable voltage ranges of 170-280 VAC for personal computers and 90-280 VAC for home appliances. Its auto-sensing frequency is 50 Hz/60 Hz.

This inverter maintains an AC voltage regulation of 230 VAC ± 5%, delivering a remarkable surge power of 22000VA and achieving a peak efficiency of 93%. The rapid transfer time is just 10 ms for personal computers and 20 ms for home appliances, ensuring a pure sine wave output for stable performance.

With a 48 VDC battery system, the inverter features a floating charge voltage of 54 VDC and overcharge protection at 63 VDC. The solar charger supports a maximum PV array power of 12000W and an MPPT range of 90 – 450 VDC.

Measuring 145 x 438 x 553.6 mm and weighing 18.4 kg, it includes various communication interfaces like USB, RS232, RS485, WiFi, and dry-contact. Operating in humidity levels of 5% to 95% and temperatures from -10°C to 50°C, it complies with CE safety standards, ensuring reliable performance for solar energy management.
