Suntronic PV 10000 Ultra

IP21 Solar Inverter
Rated power of 8000VA/8000W
Input Voltage 230 VAC
voltage range of 90-280V
48V compatible battery system
MPP range of 90 – 450 VDC

Categories: Inverters, Maxpower, Suntronic

Description

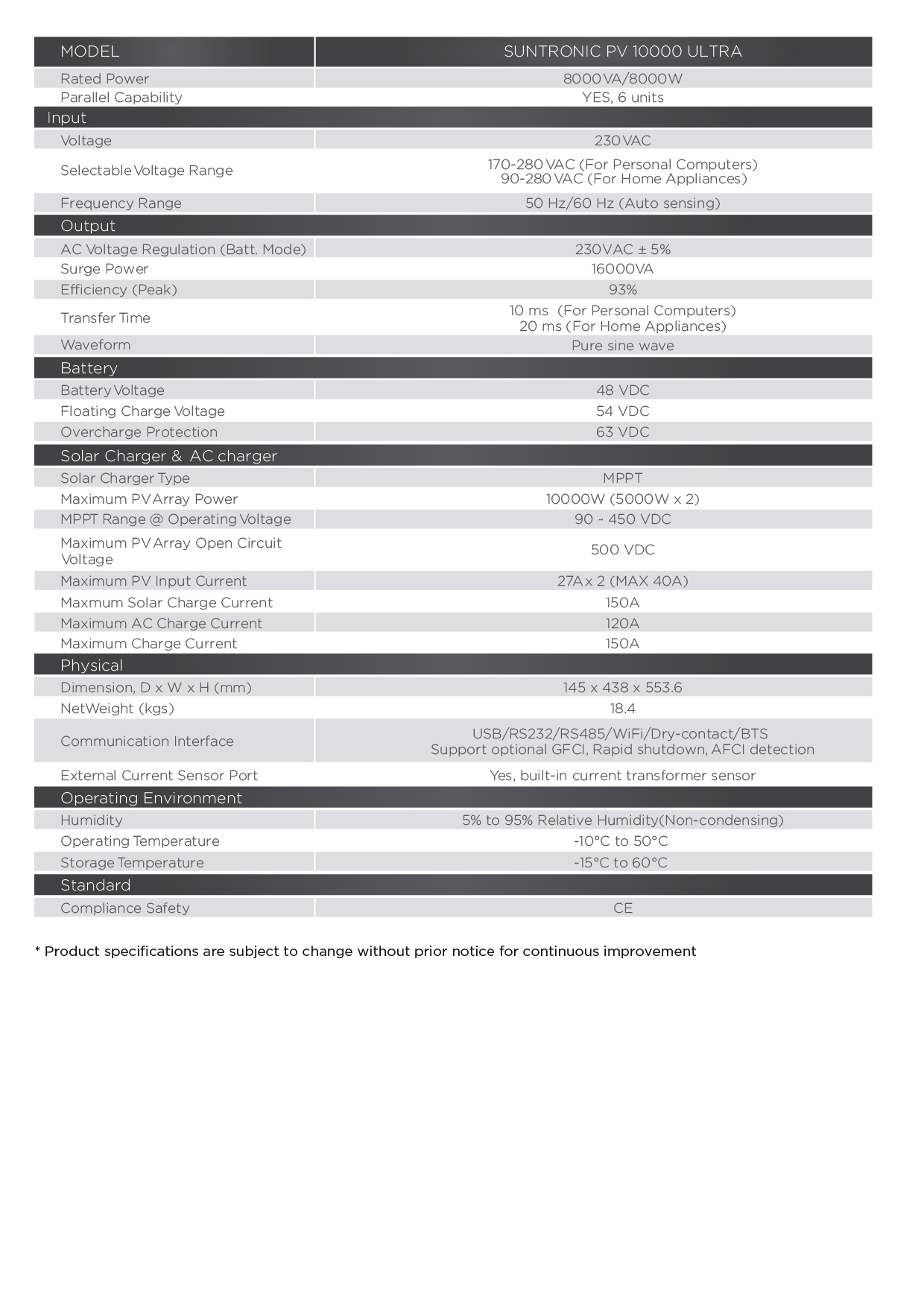

Technical Specifications

The Suntronic PV 10000 Ultra is a high-efficiency solar inverter designed for robust energy management. It features a rated power of 8000VA/8000W and the capability to connect in parallel with up to six units. It operates at an input voltage of 230 VAC, offering selectable ranges of 170-280 VAC for personal computers and 90-280 VAC for home appliances. Its auto-sensing frequency is 50 Hz/60 Hz.

The inverter provides an AC voltage regulation of 230 VAC ± 5%, with impressive surge power reaching 16000VA and a peak efficiency of 93%. The transfer time is rapid, at 10 ms for personal computers and 20 ms for home appliances, ensuring stable performance with a pure sine wave output.

It operates on a 48 VDC battery system, with a floating charge voltage of 54 VDC and overcharge protection at 63 VDC. The solar charger supports a maximum PV array power of 10000W and an MPPT range of 90 – 450 VDC. Compact and lightweight, it measures 145 x 438 x 553.6 mm and weighs 18.4 kg, suitable for diverse environmental conditions.
