MP 32000 Ultra

Nominal Capacity: 628Ah

Battery Energy: 32kWh

Nominal Voltage: 51.2Vdc

Charge / Discharge Current: 150A / 200A

Communication: CAN, RS485, RS232

Scalability: Max 63 in Parallel

Ingress Protection: IP20

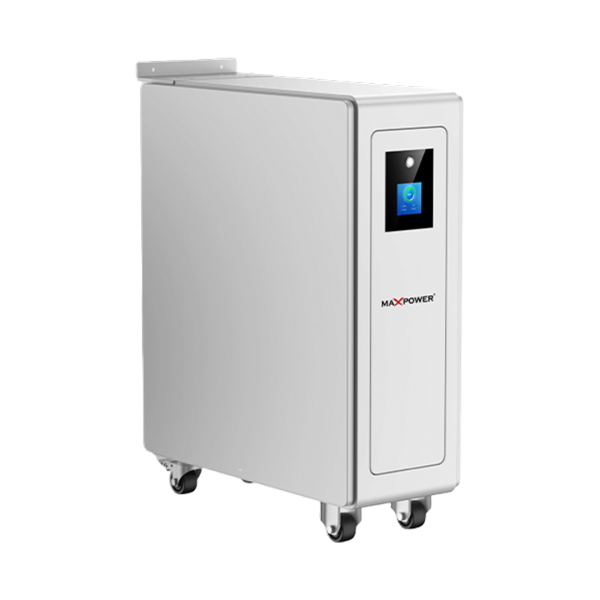

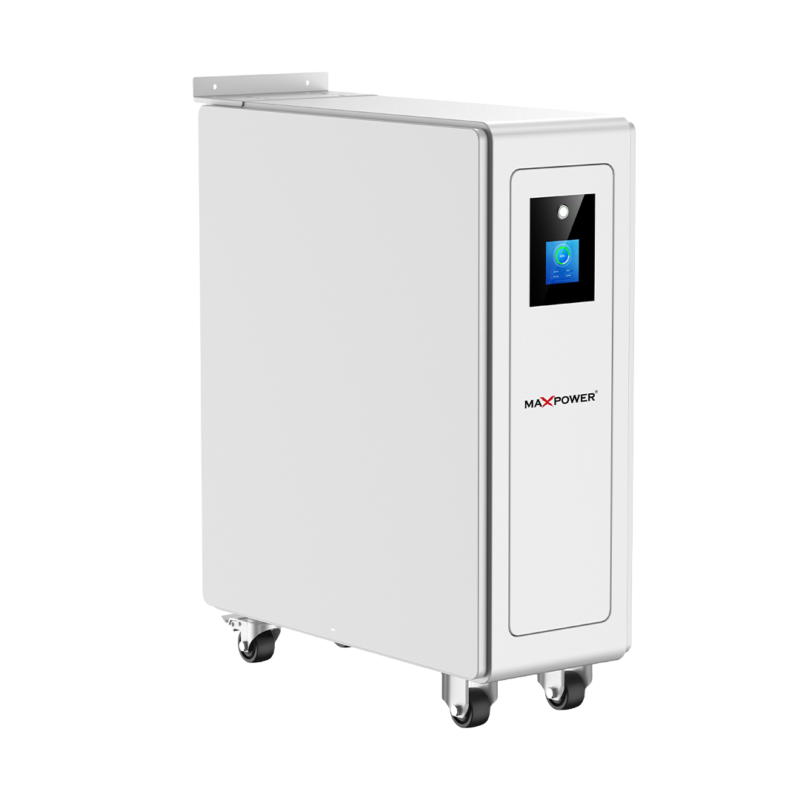

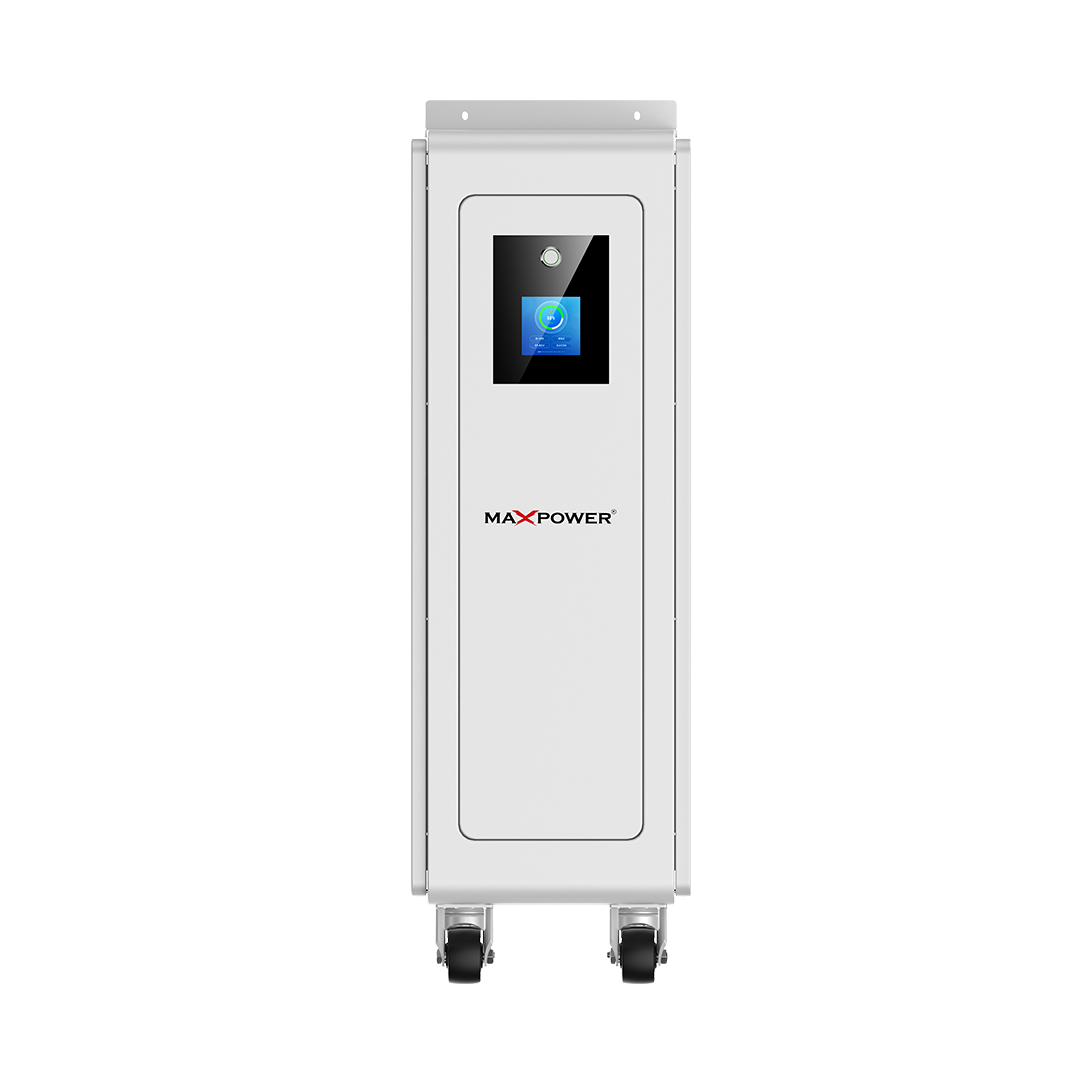

The Maxpower MP-32000 Ultra is a 51.2V 628Ah LiFePO4 (Lithium Iron Phosphate) lithium battery for solar energy systems in Pakistan, suited to large homes, offices and commercial installations. It stores 32kWh of energy in a floor-standing cabinet with wheels, and you can connect up to 63 batteries in parallel for large commercial projects. See the full lithium battery range for other options.

It has a nominal capacity of 628Ah, a charge current of 150A (7.68kW) and a discharge current of 200A (10.24kW). It is rated for 8000 cycles at 80% DoD (20°C to 55°C, 0.5C, 60% EOL). It charges at 0°C to 55°C and discharges at -20°C to 55°C.

With a color touchscreen and CAN, RS485, and RS232 communication, it connects to a compatible hybrid inverter. It has an IP20 rating, so it is meant for indoor installation. It is CE and UN38.3 certified. It works with many major hybrid inverter brands: Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power. as long as the inverter supports the battery’s 51.2V system. Browse Maxpower’s hybrid solar inverters to find a matching inverter.

Frequently Asked Questions

What is the MP-32000 Ultra lithium battery used for?
The MP-32000 Ultra is used for large solar energy storage in homes, offices, shops and commercial setups. With a compatible hybrid inverter, it provides backup power during load shedding.

What is the capacity of the MP-32000 Ultra battery?
It has a 32kWh energy capacity with a nominal voltage of 51.2V and a nominal capacity of 628Ah. You can connect up to 63 batteries in parallel for larger projects.

What is the price of the MP-32000 Ultra lithium battery in Pakistan?
The price depends on the current market rate and your system size. Contact Maxpower for the latest price and quotation.

How long does the MP-32000 Ultra battery last?
It is rated for 8000 cycles at 80% DoD (20°C to 55°C, 0.5C, 60% EOL) and uses LiFePO4 cell technology. It is CE and UN38.3 certified.

What are the maximum charge and discharge power of the MP-32000 Ultra?
Charging is up to 150A (7.68kW) and discharging is up to 200A (10.24kW). The short circuit current is 540A.

Can I connect more than one MP-32000 Ultra battery?
Yes. You can connect up to 63 batteries in parallel.

How can I monitor the MP-32000 Ultra?
It has a color touchscreen to check battery status, and it shares data with the inverter through CAN, RS485 or RS232 communication.

What is the size and weight of the MP-32000 Ultra?
It measures 800 x 325 x 900 mm and weighs 240 kg. It is installed on the floor with a stand.

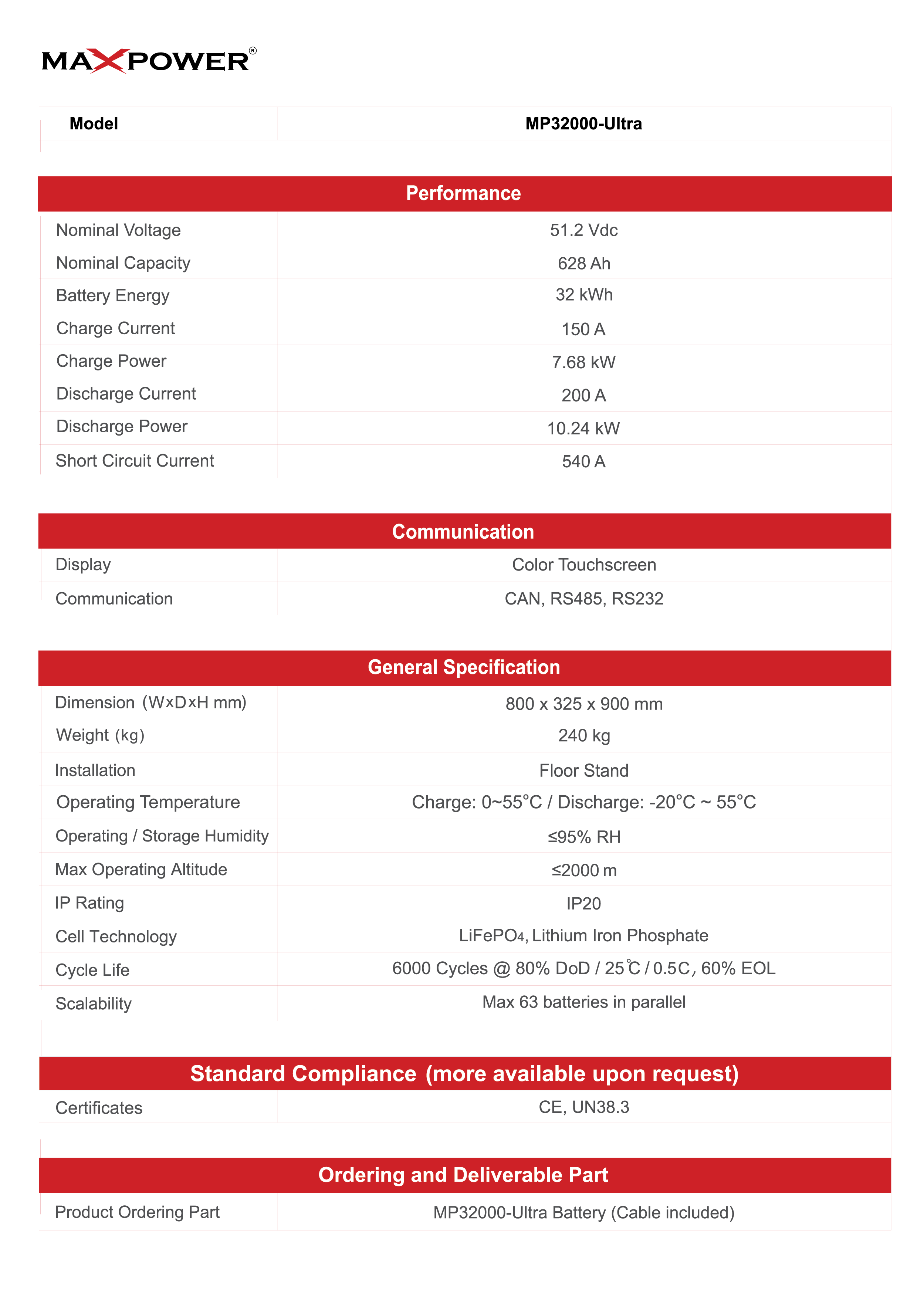

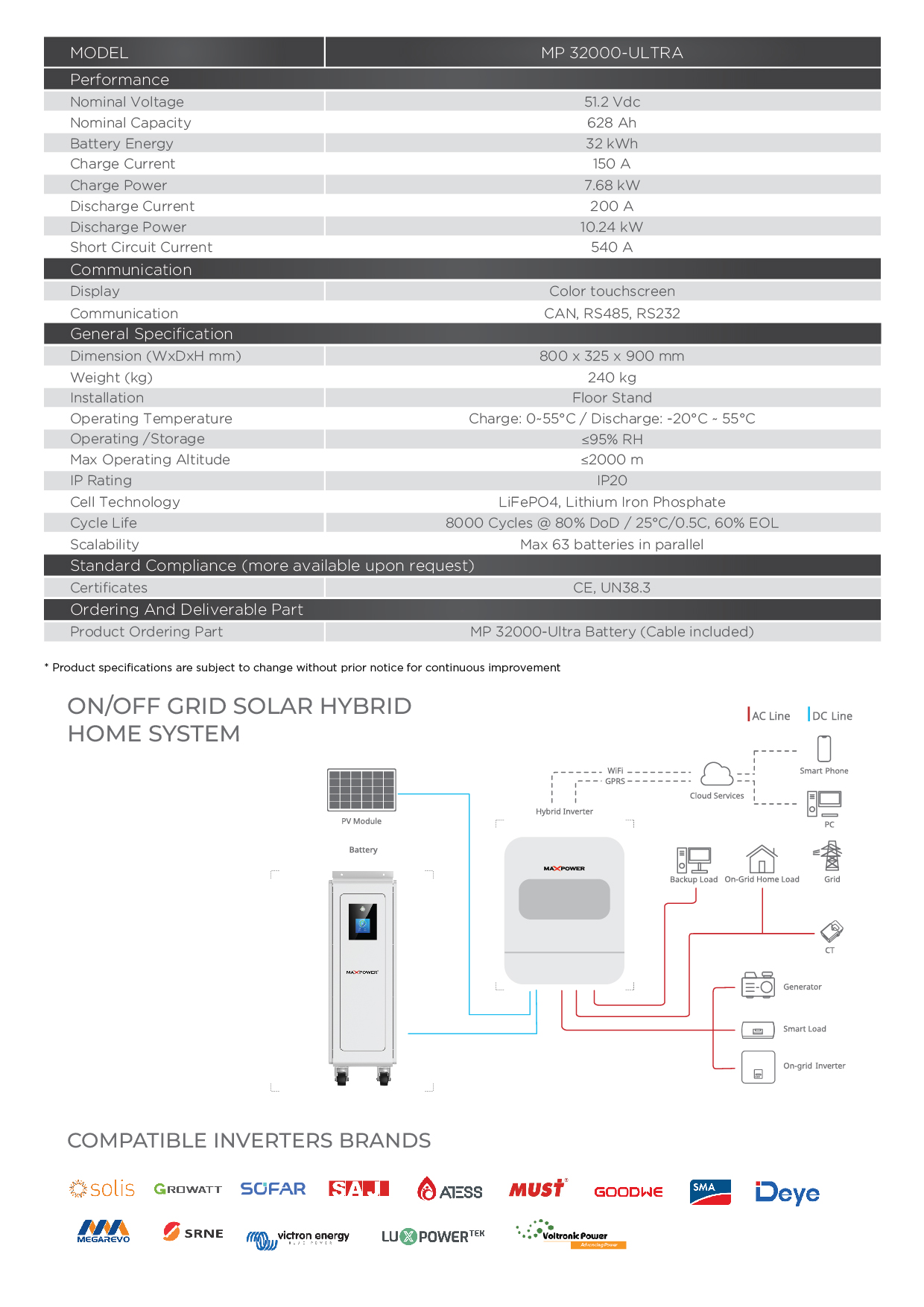

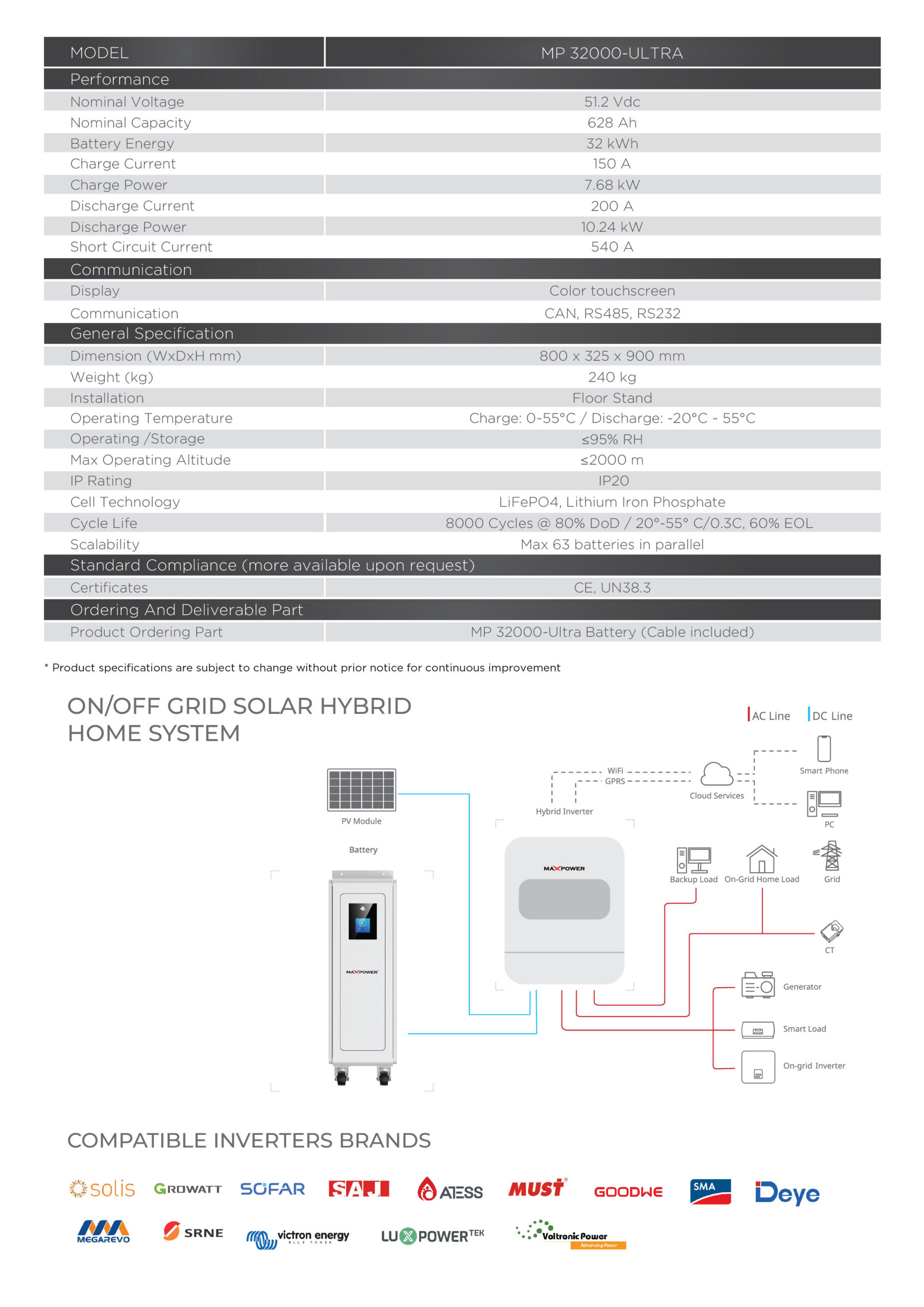

Technical Specifications

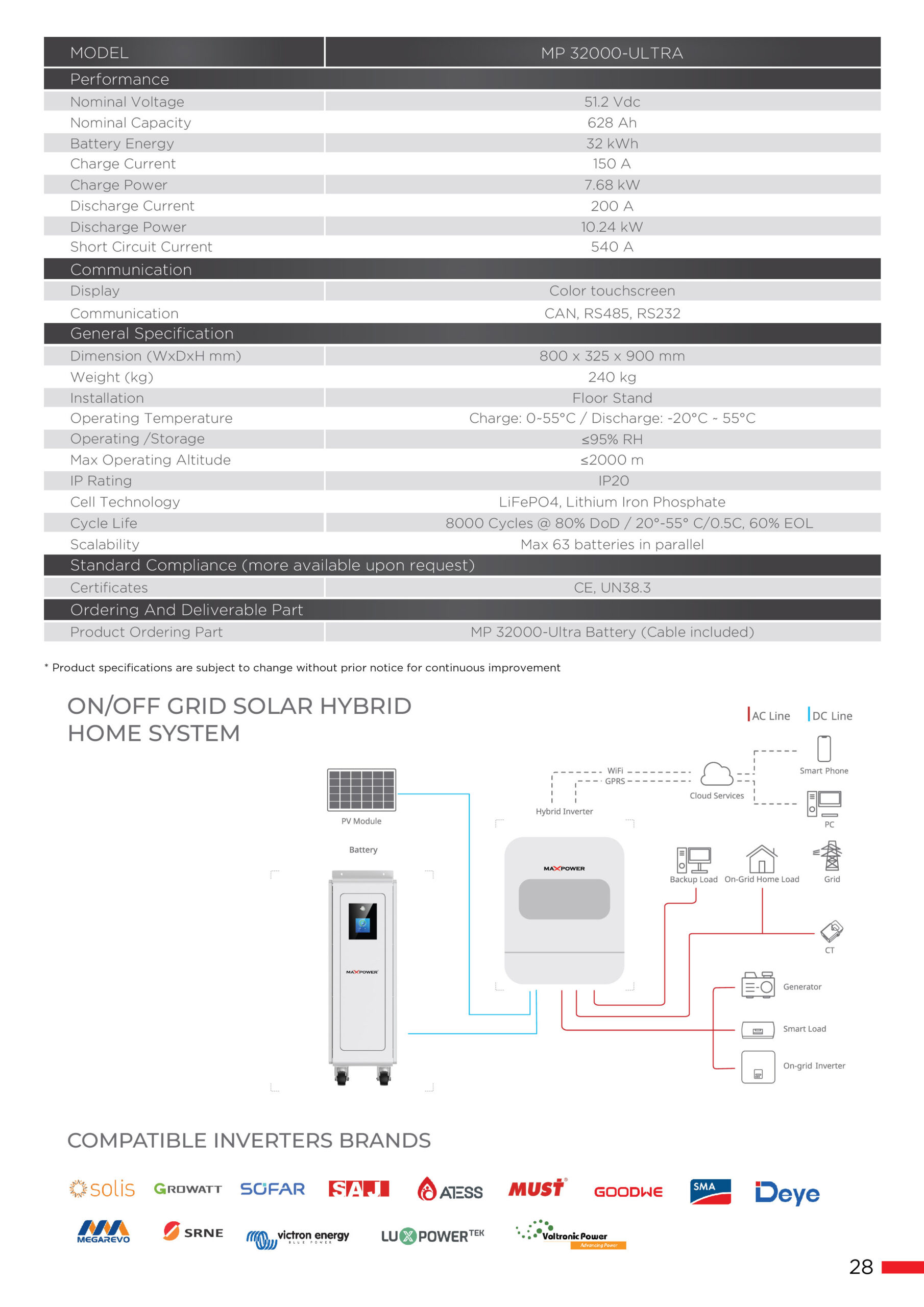

Maxpower catalogue file 18 scaled
