MP-20024 Ultra

Nominal Capacity: 200Ah

Battery Energy: 5.12kWh

Nominal Voltage: 25.6Vdc

Charge / Discharge Current: 100A / 200A

Communication: RS485

Scalability: Max 2 in Series, Max 4 in Parallel

Ingress Protection: IP20

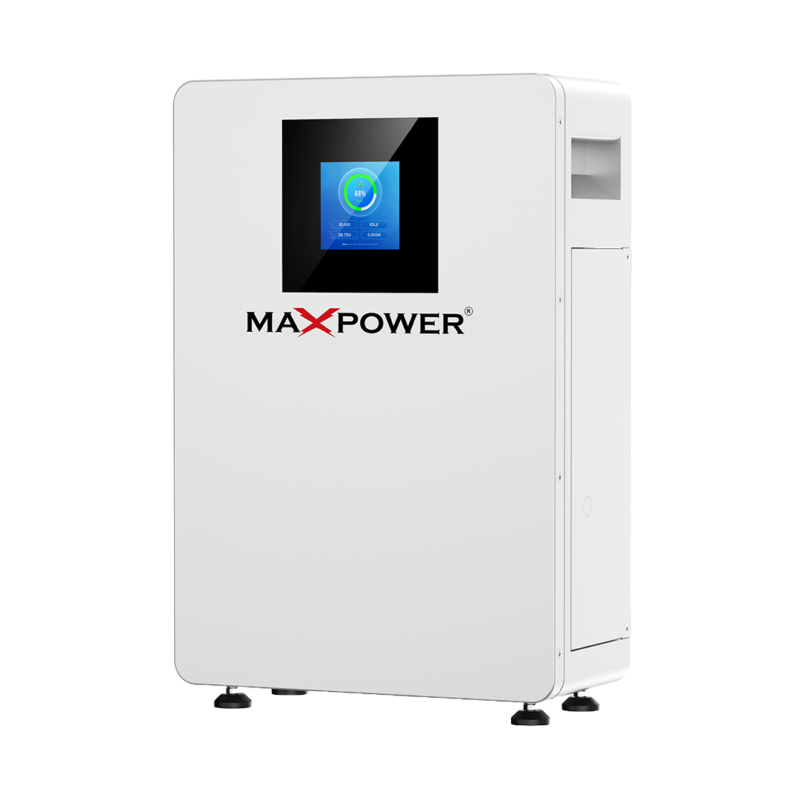

The Maxpower MP-20024 Ultra is a 25.6V 200Ah LiFePO4 (Lithium Iron Phosphate) lithium battery for solar energy systems in Pakistan, suited to homes, offices and small commercial installations. It stores 5.12kWh of energy and comes in a compact wall-mount or floor-stand design with cables and wall mount included. You can connect up to 2 batteries in series and up to 4 in parallel for more capacity. See the full lithium battery range for other options.

It has a nominal capacity of 200Ah, a charge current of 100A (2.56kW) and a discharge current of 200A (5.12kW). It is rated for 6000 cycles at 80% DoD (20ยฐC to 55ยฐC, 1C, 60% EOL). It charges at 0ยฐC to 55ยฐC and discharges at -20ยฐC to 55ยฐC.

With a color touch screen and RS485 communication, it connects to a compatible hybrid inverter. It has an IP20 rating, so it is meant for indoor installation. It is CE and UN38.3 certified.It works with many major hybrid inverter brands:ย Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power. as long as the inverter supports the batteryโ€™s 25.6V system. Browse Maxpowerโ€™s hybrid solar inverters to find a matching inverter.

Frequently Asked Questions

What is the MP-20024 Ultra lithium battery used for?
The MP-20024 Ultra is used for solar energy storage in homes, offices and shops. With a compatible hybrid inverter, it provides backup power during load shedding.

What is the capacity of the MP-20024 Ultra battery?
It has a 5.12kWh energy capacity with a nominal voltage of 25.6V and a nominal capacity of 200Ah. You can connect up to 4 batteries in parallel (about 20.48kWh) for larger backup needs.

What is the price of the MP-20024 Ultra lithium battery in Pakistan?
The price depends on the current market rate and your system size. Contact Maxpower for the latest price and quotation.

What are the maximum charge and discharge power of the MP-20024 Ultra?
Charging is up to 100A (2.56kW) and discharging is up to 200A (5.12kW). The short circuit current is 350A.

Can I connect more than one MP-20024 Ultra battery?
Yes. You can connect up to 2 batteries in series and up to 4 batteries in parallel.

How can I monitor the MP-20024 Ultra?
It has a color touch screen to check battery status, and it shares data with the inverter through RS485 communication.

What is the size and weight of the MP-20024 Ultra?
It measures 610 x 445 x 150 mm and weighs 47.4 kg. It can be installed on the floor with a stand or mounted on the wall.

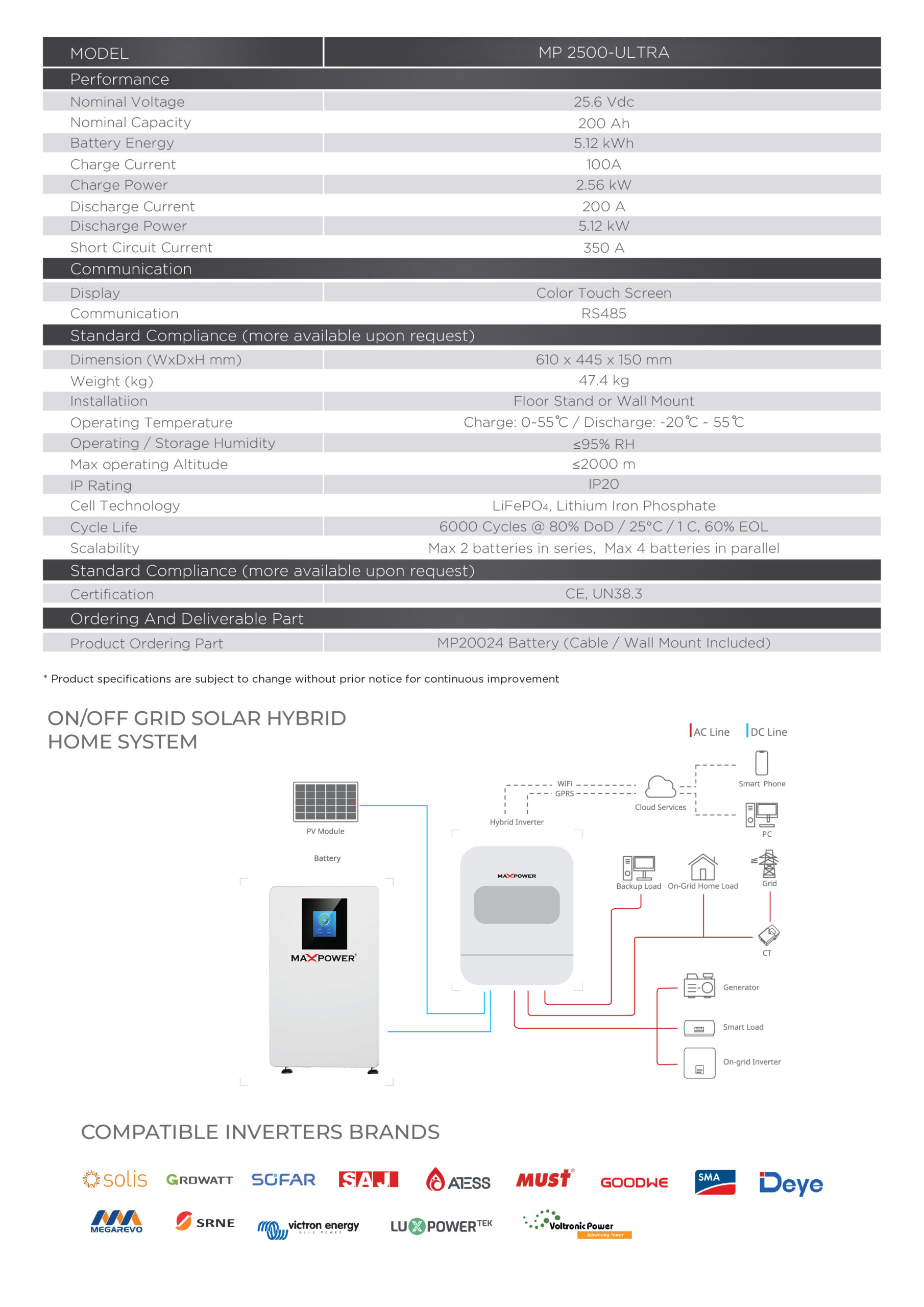

Technical Specifications

20024 Ultra scaled
