December 3, 2025Voltas 20KTLX-G5
Max. PV access power: 40kW
Max. DC input power: 26kW
Max. PV input voltage: 1100V
Operation voltage range: 200V – 1000V
Independent MPPTs / strings per MPPT: 2 / 2
MPPT max. current: 30A / 30A
The Voltas 20KTLX-G5 Three-Phase On-Grid Inverter is a high-performance solar inverter designed for commercial buildings, industrial facilities, offices and large residential projects. With a 20kW rated output, two MPPT trackers and up to 98.5% efficiency, this inverter helps maximize solar energy production while reducing electricity costs.
Its three-phase on-grid design (400V, 3W+N+PE) ensures stable power distribution and supports large solar installations, with a maximum PV access power of 40kW, a maximum PV input voltage of 1100V and an operating voltage range of 200V to 1000V. The inverter features an LED display, optional WiFi / GPRS / RS485 communication for monitoring, multiple protection functions including DC switch, reverse polarity, anti-islanding, AC and DC surge protection and RCD detection, and an IP65-rated enclosure for reliable outdoor performance. It comes with a 5-year standard warranty.
The Voltas 20KTLX-G5 is an ideal choice for businesses looking to improve energy efficiency and achieve long-term savings through solar energy solutions.
Frequently Asked Questions:
What makes the Voltas 20KTLX-G5 suitable for solar energy systems?
The Voltas 20KTLX-G5 offers 20kW output power, high conversion efficiency and advanced MPPT technology, making it an excellent solution for commercial and industrial solar energy projects.
How efficient is the Voltas 20KTLX-G5 inverter?
The inverter delivers a maximum efficiency of 98.5% and a European efficiency of 98.2%, helping businesses generate maximum solar energy and reduce electricity bills.
Can the Voltas 20KTLX-G5 support large solar panel installations?
Yes, the inverter supports a maximum PV access power of 40kW and has two independent MPPT trackers (2 + 2 strings) with a maximum input voltage of 1100V, allowing it to work efficiently with large solar panel systems and commercial solar installations.
Is the Voltas 20KTLX-G5 suitable for net metering?
Yes, this is a three-phase on-grid inverter designed for grid-connected solar energy systems, which is the type of inverter used in commercial net metering setups. Please confirm the current approval requirements with your distribution company (DISCO) before installation.
What warranty does the Voltas 20KTLX-G5 come with?
The Voltas 20KTLX-G5 comes with a 5-year standard warranty.
Why choose Maxpower for solar energy solutions?
Maxpower provides advanced solar energy products, reliable after-sales support, monitoring options and durable inverter technology for residential and commercial customers.

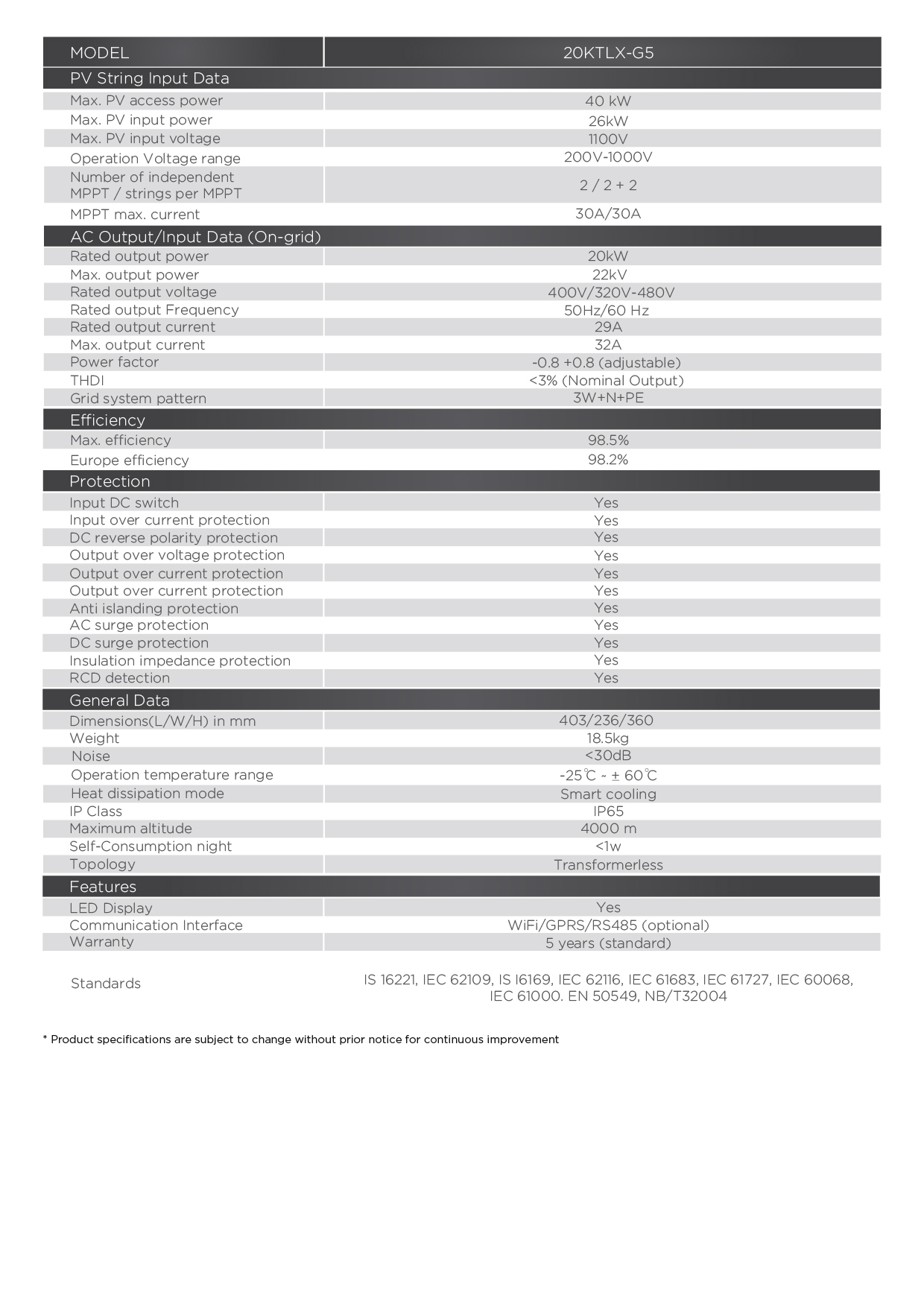

Technical Specifications
